Barandilla de PRFV
Pasamanos de PRFV

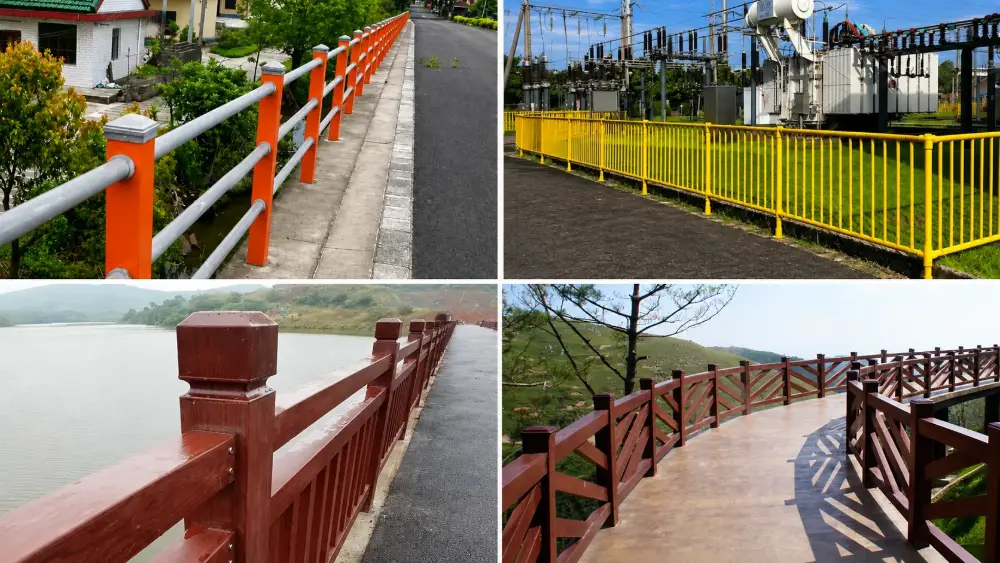

Barandilla de FRP personalizada para plataformas industriales, pasillos y plantas químicas
Resistente a la corrosión
Alta capacidad de carga
Superficie antideslizante
Instalación sencilla
Barandilla de PRFV
Múltiples opciones para satisfacer distintos requisitos de proyectos

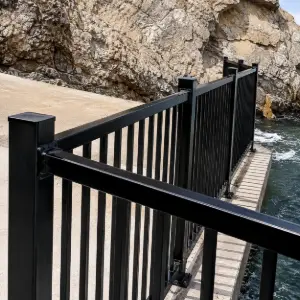

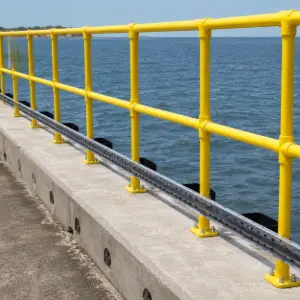

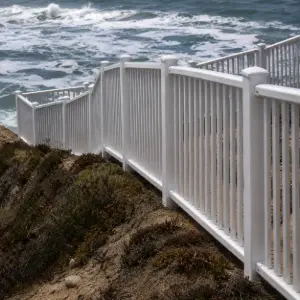

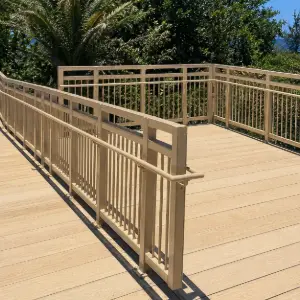

Coastal Corrosion-Resistant Guardrail
- Corrosion-resistant FRP structure withstands salt spray and high humidity
- Non-rusting material reduces maintenance and repainting requirements
- Excellent weather resistance for long-term coastal outdoor use

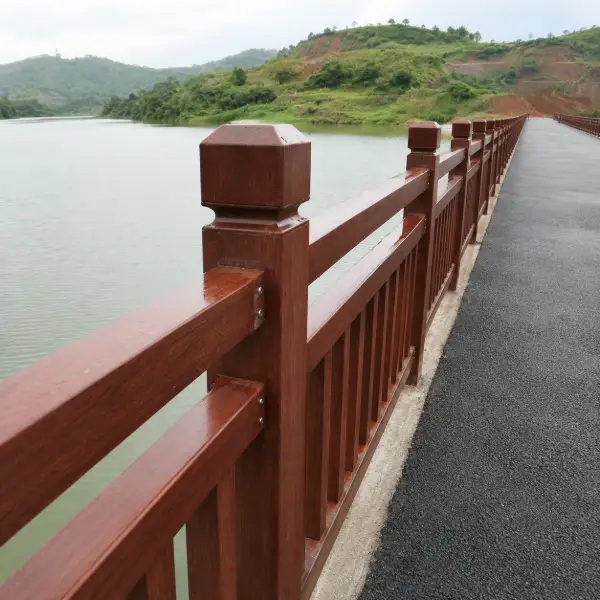

Barandilla de PRFV para peatones
- Diseñado para la seguridad peatonal y separación del tráfico
- Excelente resistencia al impacto y rendimiento estructural estable
- Resistente a los rayos UV y a la intemperie, para una larga vida útil en exteriores
- No conductor y libre de óxido, ideal para infraestructuras públicas
Valla de seguridad para subestaciones eléctricas
- No conductor eléctrico para mayor seguridad operativa
- Resistente a la corrosión, químicos y condiciones climáticas extremas
- Colores de alta visibilidad que mejoran la percepción de riesgos
- Bajo mantenimiento y apto para aplicaciones industriales a largo plazo
Valla industrial de PRFV anticorrosiva
- Excelente resistencia a la corrosión para entornos industriales adversos
- Ligero pero resistente, facilita la instalación y el transporte
- Superficie resistente a los rayos UV que conserva el color y la apariencia con el tiempo
- Ideal para fábricas, plantas de tratamiento de aguas residuales e instalaciones costeras
Especificaciones de rejilla de PRFV por extrusión continua
| Parámetro | Contenido recomendado |
|---|---|
| Material | PRFV / Plástico Reforzado con Fibra de Vidrio |
| Altura del barandal | 900 mm / 1000 mm / 1200 mm |
| Separación entre postes | 1.5 m - 2.5 m |
| Longitud del panel | Personalizable |
| Acabado superficial | Liso / Texturizado antideslizante |
| Color | Amarillo, verde, gris, naranja o personalizado |
| Tipo de resina | Poliéster / Éster vinílico / Epoxi |
| Resistencia a los rayos UV | Excelente |
| Resistencia a la corrosión | Apto para entornos químicos y marinos |
| Temperatura de funcionamiento | -40°C to +120°C |
| Resistencia a la tracción | 300 MPa - 500 MPa |
| Resistencia a la flexión | 400 MPa - 600 MPa |
| Densidad | Approx. 1.8 g/cm³ |
| Clasificación de retardante de fuego | ASTM E84 Clase 1 |
| Instalación | Modular y de fácil montaje |
Frequently Asked Questions About FRP Guardrails
What is the size of a pedestrian railing?
Pedestrian railing dimensions vary by standard and application. Common reference sizes include:
| Standard / Application | Altura |
|---|---|
| UK Building Regulations (buildings) | 1100 mm |
| UK HSE guidance (non-construction) | minimum 950 mm |
| UK Work at Height Regulations (construction) | minimum 950 mm |
| British Standard 6180 (internal stairs/landings) | minimum 900 mm |
| British Standard 6180 (external balconies/roof terraces) | minimum 1100 mm |
| OSHA (US general industry) | 42 inches ± 3 inches (approx. 107 cm) |
| AASHTO (US bridges) | minimum 3 feet 6 inches (approx. 107 cm) |
| CHBDC (Canada bridges) | 1050–1100 mm |
| Typical UK commercial pedestrian guardrail | 1050 mm above ground |
Please note: These are reference values only. The final dimensions must be determined based on the specific project’s applicable local building codes and standards.
What is the full form of FRP in safety?
FRP stands for Fiber Reinforced Polymer (or Fibre-Reinforced Polymer). In the context of safety products, FRP is a composite material made of a polymer resin matrix reinforced with fibers (typically glass, carbon, or aramid). It is also commonly referred to as fiberglass o GRP (Glass Reinforced Polymer)
What is the full form of FRP railing?
FRP railing stands for Fiber Reinforced Polymer Railing. It is a railing system manufactured from FRP composite materials, often also called fiberglass reinforced plastic (FRP) pipe and tube railings
What are the four general types of guardrails?
The four general types of guardrails commonly referenced for roadside applications are:
Cable with wood posts
Steel with wood or metal posts (the most common is galvanized steel W-beam guardrail)
Steel box-beam
Concrete barriers (typically installed in medians)
Alternatively, guardrails can be categorized by their deflection characteristics upon impact:
Flexible (e.g., cable barriers)
Semi-rigid (e.g., W-beam guardrail)
Rigid (e.g., concrete or steel bridge barriers)
What is the classification of a guardrail?
Guardrails can be classified in several ways:
By deflection characteristics:
Flexible – e.g., cable barriers
Semi-rigid – e.g., W-beam guardrails
Rigid – e.g., concrete barriers
By structural type (e.g., Missouri DOT standard):
Type A – single W-beam rail
Type B – double W-beam rail (for medians)
Type D – single W-beam rail with wider post spacing
Type E – single thrie-beam rail
By protection class (temporary edge protection, DIN EN 13374):
Class A – for static loads (leaning, holding, running against)
Class B/C – for static and minor dynamic loads
What are a safe pedestrian barriers?
Safe pedestrian barriers are physical barriers installed along the edges of pedestrian facilities (walkways, bridges, platforms, etc.) to prevent falls and protect pedestrians from hazards. A safe pedestrian barrier typically must:
Be of sufficient height – generally not less than 1.10 m
Have adequate structural strength – capable of resisting specified loads (e.g., as per BS 6399)
Have appropriate spacing – gaps should not allow passage of a small child (e.g., no gap allowing passage of a 100 mm sphere in UK domestic settings)
Be made of durable, low-maintenance materials – such as FRP, which does not rust or rot
What are the current guardrail standards?
Current guardrail standards vary by region and application. Key standards include:
UK / Europe:
BS EN ISO 14122-3:2016 – Fixed guardrails for machinery access
BS 6180 – Barriers in and around buildings
BS EN 13374 – Temporary edge protection
BS 13700:2021 – Permanent weighted barrier systems
Work at Height Regulations 2005 – legal requirements for fall protection
US:
OSHA 29 CFR 1910.29 – General industry guardrail requirements
OSHA 29 CFR 1926.502 – Construction guardrail requirements
AASHTO – Bridge railing standards
International:
CHBDC (Canadian Highway Bridge Design Code) – Pedestrian railing requirements
ASTM E985 – FRP railing standards
What is a standard guardrail?
A standard guardrail (or standard railing) is a barrier system erected along unprotected or exposed sides of a walking/working surface to prevent falls.
A standard guardrail typically consists of:
A top rail – smooth-surfaced throughout
An intermediate rail (midrail) – located approximately midway between top rail and walking surface
Posts – vertical supports
Key requirements (OSHA reference):
Top edge height: 42 inches ± 3 inches (approx. 107 cm) above walking/working level
Must withstand a force of at least 200 pounds applied at the top edge
In the UK context, a standard guardrail must comply with relevant height and spacing requirements (see Q9 above), typically featuring a top rail at 1100 mm (buildings) or 950 mm (construction) with intermediate rails spaced to prevent falls
Excelentes propiedades del producto
Resistente a la corrosión
Diseñado con materiales de PRFV de primera calidad para resistir la humedad, los productos químicos y los entornos exteriores adversos con una durabilidad duradera.
Alta capacidad de carga
Diseñado con resistencia estructural reforzada para soportar cargas pesadas manteniendo la estabilidad y el rendimiento a lo largo del tiempo.
Superficie antideslizante
El acabado antideslizante texturizado mejora la seguridad al proporcionar tracción fiable en condiciones húmedas, aceitosas o de alto tránsito.
Instalación sencilla
El diseño ligero y modular permite una instalación rápida, reduciendo el tiempo de mano de obra y los costos de mantenimiento.
