FRP Guardrail
FRP Handrail
Custom FRP Handrail for Industrial Platforms, Walkways & Chemical Plants
Corrosion Resistant
High Load Capacity
Anti-slip Surface
Eosy Installation

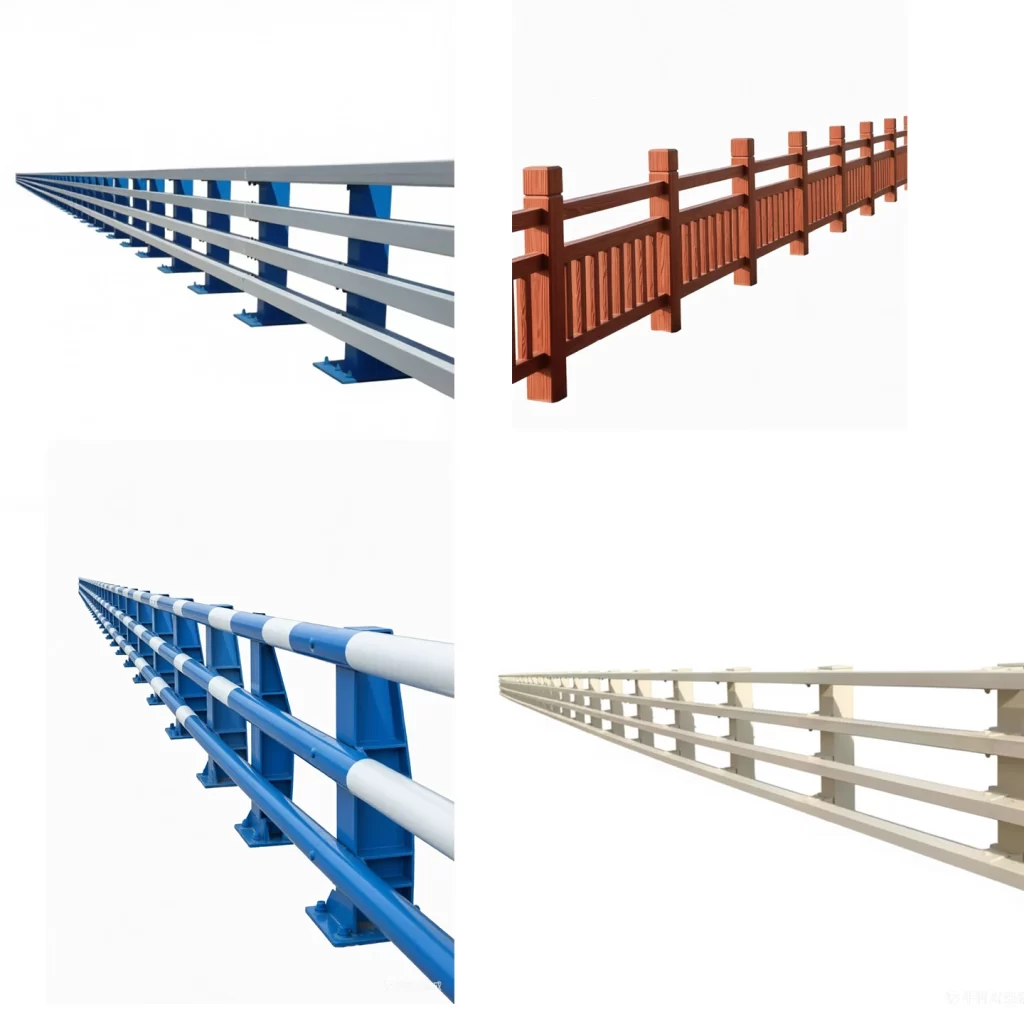

FRP Guardrail
Multiple options to meet different project requirements
Coastal Corrosion-Resistant Guardrail
- Corrosion-resistant FRP structure withstands salt spray and high humidity
- Non-rusting material reduces maintenance and repainting requirements
- Excellent weather resistance for long-term coastal outdoor use
Pedestrian FRP Guardrail
- Designed for pedestrian safety and traffic separation
- Excellent impact resistance with stable structural performance
- UV-resistant and weatherproof for long outdoor service life
- Non-conductive and rust-free, ideal for public infrastructure

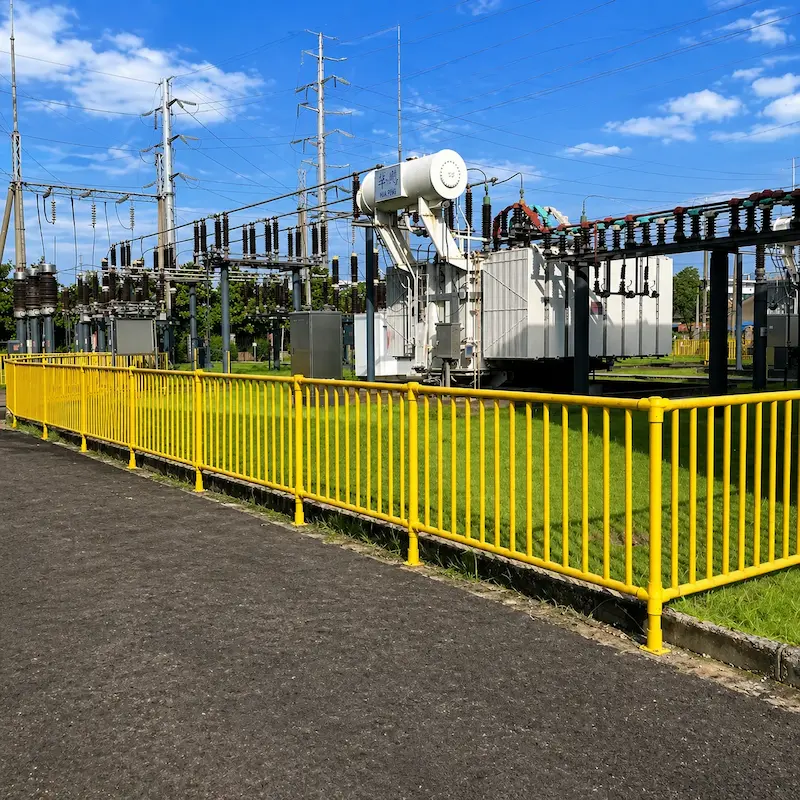

Electrical Substation Safety Fence
- Electrically non-conductive for enhanced operational safety
- Resistant to corrosion, chemicals, and extreme weather conditions
- High visibility color options improve hazard awareness
- Low maintenance and suitable for long-term industrial applications
Industrial Anti-corrosion FRP Fence
- Superior corrosion resistance for harsh industrial environments
- Lightweight yet strong for efficient installation and transport
- UV-resistant surface maintains color and appearance over time
- Ideal for factories, wastewater plants, and coastal facilities
FRP Pultruded Grating Specifications
| Parameter | Recommended Content |
|---|---|
| Material | FRP / Fiberglass Reinforced Plastic |
| Rail Height | 900 mm / 1000 mm / 1200 mm |
| Post Spacing | 1.5 m - 2.5 m |
| Panel Length | Customizable |
| Surface Finish | Smooth / Gritted |
| Color | Yellow, Green, Gray, Orange or Custom |
| Resin Type | Polyester / Vinyl Ester / Epoxy |
| UV Resistance | Excellent |
| Corrosion Resistance | Suitable for chemical and marine environments |
| Operating Temperature | -40°C to +120°C |
| Tensile Strength | 300 MPa - 500 MPa |
| Flexural Strength | 400 MPa - 600 MPa |
| Density | Approx. 1.8 g/cm³ |
| Fire Retardant Rating | ASTM E84 Class 1 |
| Installation | Modular and easy assembly |
Frequently Asked Questions About FRP Guardrails
What is the size of a pedestrian railing?
Pedestrian railing dimensions vary by standard and application. Common reference sizes include:
| Standard / Application | Height |
|---|---|
| UK Building Regulations (buildings) | 1100 mm |
| UK HSE guidance (non-construction) | minimum 950 mm |
| UK Work at Height Regulations (construction) | minimum 950 mm |
| British Standard 6180 (internal stairs/landings) | minimum 900 mm |
| British Standard 6180 (external balconies/roof terraces) | minimum 1100 mm |
| OSHA (US general industry) | 42 inches ± 3 inches (approx. 107 cm) |
| AASHTO (US bridges) | minimum 3 feet 6 inches (approx. 107 cm) |
| CHBDC (Canada bridges) | 1050–1100 mm |
| Typical UK commercial pedestrian guardrail | 1050 mm above ground |
Please note: These are reference values only. The final dimensions must be determined based on the specific project’s applicable local building codes and standards.
What is the full form of FRP in safety?
FRP stands for Fiber Reinforced Polymer (or Fibre-Reinforced Polymer). In the context of safety products, FRP is a composite material made of a polymer resin matrix reinforced with fibers (typically glass, carbon, or aramid). It is also commonly referred to as fiberglass or GRP (Glass Reinforced Polymer)
What is the full form of FRP railing?
FRP railing stands for Fiber Reinforced Polymer Railing. It is a railing system manufactured from FRP composite materials, often also called fiberglass reinforced plastic (FRP) pipe and tube railings
What are the four general types of guardrails?
The four general types of guardrails commonly referenced for roadside applications are:
Cable with wood posts
Steel with wood or metal posts (the most common is galvanized steel W-beam guardrail)
Steel box-beam
Concrete barriers (typically installed in medians)
Alternatively, guardrails can be categorized by their deflection characteristics upon impact:
Flexible (e.g., cable barriers)
Semi-rigid (e.g., W-beam guardrail)
Rigid (e.g., concrete or steel bridge barriers)
What is the classification of a guardrail?
Guardrails can be classified in several ways:
By deflection characteristics:
Flexible – e.g., cable barriers
Semi-rigid – e.g., W-beam guardrails
Rigid – e.g., concrete barriers
By structural type (e.g., Missouri DOT standard):
Type A – single W-beam rail
Type B – double W-beam rail (for medians)
Type D – single W-beam rail with wider post spacing
Type E – single thrie-beam rail
By protection class (temporary edge protection, DIN EN 13374):
Class A – for static loads (leaning, holding, running against)
Class B/C – for static and minor dynamic loads
What are a safe pedestrian barriers?
Safe pedestrian barriers are physical barriers installed along the edges of pedestrian facilities (walkways, bridges, platforms, etc.) to prevent falls and protect pedestrians from hazards. A safe pedestrian barrier typically must:
Be of sufficient height – generally not less than 1.10 m
Have adequate structural strength – capable of resisting specified loads (e.g., as per BS 6399)
Have appropriate spacing – gaps should not allow passage of a small child (e.g., no gap allowing passage of a 100 mm sphere in UK domestic settings)
Be made of durable, low-maintenance materials – such as FRP, which does not rust or rot
What are the current guardrail standards?
Current guardrail standards vary by region and application. Key standards include:
UK / Europe:
BS EN ISO 14122-3:2016 – Fixed guardrails for machinery access
BS 6180 – Barriers in and around buildings
BS EN 13374 – Temporary edge protection
BS 13700:2021 – Permanent weighted barrier systems
Work at Height Regulations 2005 – legal requirements for fall protection
US:
OSHA 29 CFR 1910.29 – General industry guardrail requirements
OSHA 29 CFR 1926.502 – Construction guardrail requirements
AASHTO – Bridge railing standards
International:
CHBDC (Canadian Highway Bridge Design Code) – Pedestrian railing requirements
ASTM E985 – FRP railing standards
What is a standard guardrail?
A standard guardrail (or standard railing) is a barrier system erected along unprotected or exposed sides of a walking/working surface to prevent falls.
A standard guardrail typically consists of:
A top rail – smooth-surfaced throughout
An intermediate rail (midrail) – located approximately midway between top rail and walking surface
Posts – vertical supports
Key requirements (OSHA reference):
Top edge height: 42 inches ± 3 inches (approx. 107 cm) above walking/working level
Must withstand a force of at least 200 pounds applied at the top edge
In the UK context, a standard guardrail must comply with relevant height and spacing requirements (see Q9 above), typically featuring a top rail at 1100 mm (buildings) or 950 mm (construction) with intermediate rails spaced to prevent falls
Excellent Product Properties
Corrosion Resistant
Engineered with premium FRP materials to withstand moisture, chemicals, and harsh outdoor environments for long-lasting durability.
High Load Capacity
Designed with reinforced structural strength to support heavy loads while maintaining stability and performance over time.
Anti-slip Surface
Textured anti-slip finish enhances safety by providing reliable traction in wet, oily, or high-traffic conditions.
Eosy Installation
Lightweight and modular design allows for quick installation, reducing labor time and maintenance costs.
