FRP Grating
FRP Grating
Custom FRP Grating
Manufacturer & Supplier
• Corrosion Resistant • Anti-slip Surface • Long Service Life
Corrosion Resistant
High Load Capacity
Anti-slip Surface
Eosy Installation
Applications
FRP GRATING TYPES
Multiple options to meet different project requirements
FRP MOLDED GRATING
- High strength-to-weight ratio, lightweight yet durable
- Corrosion and chemical resistant, ideal for harsh environments
- Non-slip surface for enhanced safety
FRP PULTRUDED GRATING
- Continuous fiberglass construction for maximum structural strength
- Excellent load-bearing capacity and impact resistance
- Resistant to UV, corrosion, and electrical insulation properties

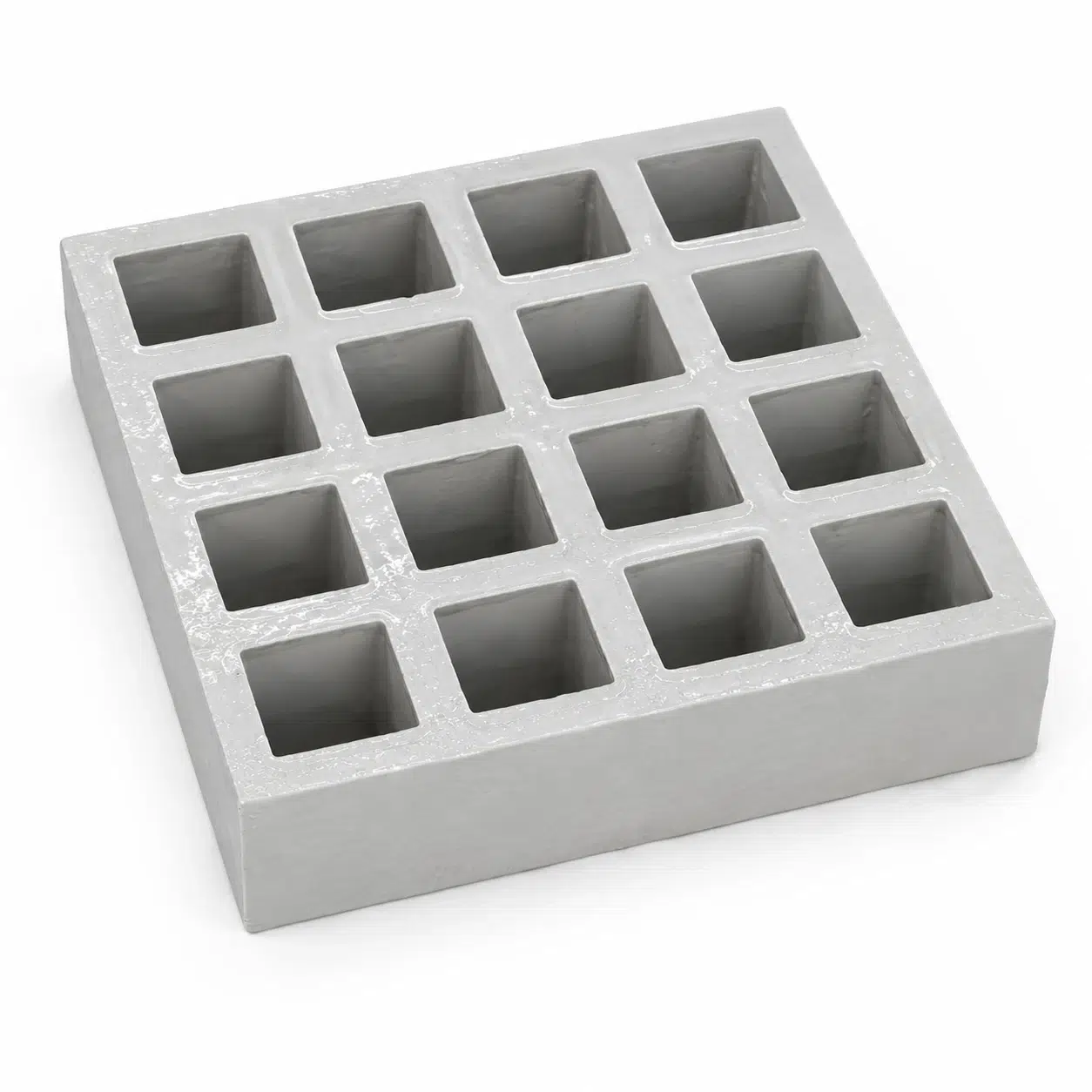

Heavy Duty FRP Grating
- Heavy Duty FRP Grating is designed for high-load applications.
- It is widely used in industrial platforms, trench covers, docks, and loading areas.
FRP MINI MESH GRATING
- Smaller mesh openings for finer protection or filtration
- Lightweight and high corrosion resistance
- Strong load capacity while maintaining good airflow and light passage
FRP Molded Grating Specifications
| Mesh Size | Panel Size | Depth | Weight | Open Area |
|---|---|---|---|---|
| 1" x 4" | 4' x 12' | 1" | 3.5 lb/ft² | 66% |
| 1" x 4" | 4' x 12' | 1.5" | 5.3 lb/ft² | 66% |
| 1.5" x 1.5" | 4' x 12' | 1" | 2.6 lb/ft² | 71% |
| 1.5" x 1.5" | 4' x 12' | 1.5" | 3.9 lb/ft² | 71% |
| 2" x 2" | 4' x 12' | 1" | 2 lb/ft² | 77% |
| 2" x 2" | 4' x 12' | 1.5" | 3 lb/ft² | 77% |
The table shows some typical specifications of Frp Molded grating. Please note that these are only for reference, and you should consult the manufacturer for more details and customized options.
Heavy Duty FRP Grating Specifications
| Parameter | Value |
|---|---|
| Bearing bar height | 25 mm to 63 mm |
| Bearing bar width | 15 mm to 38 mm |
| Bearing bar spacing | 19 mm to 102 mm |
| Cross bar spacing | 38 mm to 152 mm |
| Panel size | Up to 1220 mm x 3660 mm |
| Surface | Smooth or gritted |
| Color | Yellow, green, gray, orange or custom |
| Resin type | Polyester, vinylester, epoxy, phenolic or polyurethane |
| Glass content | 65% to 70% by weight |
| Density | 1.8 g/cm³ |
| Tensile strength | 300 MPa to 500 MPa |
| Flexural strength | 400 MPa to 600 MPa |
| Compressive strength | 300 MPa to 500 MPa |
| Thermal expansion coefficient | 8 x 10^-6 /K |
| Flame spread rating | ASTM E84 Class 1 or Class 2 |
Excellent Product Properties
Corrosion Resistant
Engineered with premium FRP materials to withstand moisture, chemicals, and harsh outdoor environments for long-lasting durability.
High Load Capacity
Designed with reinforced structural strength to support heavy loads while maintaining stability and performance over time.
Anti-slip Surface
Textured anti-slip finish enhances safety by providing reliable traction in wet, oily, or high-traffic conditions.
Eosy Installation
Lightweight and modular design allows for quick installation, reducing labor time and maintenance costs.
Why Choose US?
Long-lasting FRP solutions for harsh industrial environments.
Tailor-made grating and profiles for your project needs.
Lightweight design cuts installation time and costs.
Reliable supply chain and dedicated customer support.
