FRP Grating Manufacturer for
Industrial Walkways
Platforms & Corrosive Environments
Mingchi FRP supplies molded, pultruded, phenolic and heavy-duty FRP grating for chemical plants, wastewater treatment, marine platforms, power plants and industrial flooring projects.
- Factory Direct Supply
- Custom Size Available
- Corrosion-Resistant Resin Options
- Bulk Export Orders Supported
Choose the Right
FRP Grating for Your Project
Select from our main FRP grating series based on load requirement, span, fire safety and application environment.

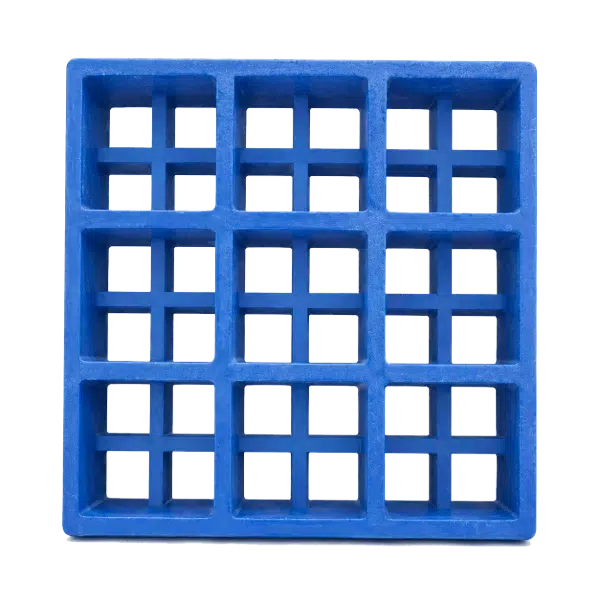

Molded FRP Grating
Cost-effective FRP grating for corrosion-resistant walkways, platforms, trench covers and wet industrial environments.

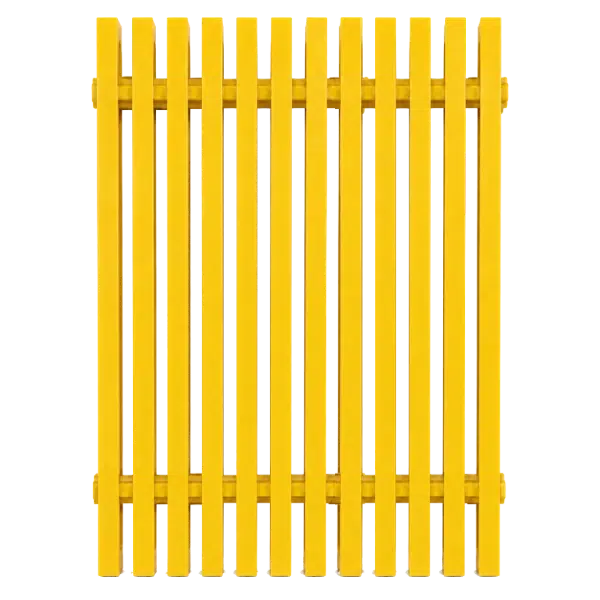

Pultruded FRP Grating
High-strength FRP grating with excellent load capacity, ideal for longer spans and structural platform applications.
Phenolic FRP Grating
Fire-resistant and low-smoke FRP grating for projects with stricter safety and flame-retardant requirements.
Heavy-Duty FRP Grating
Designed for higher load requirements in industrial flooring, equipment access and heavy-duty platform applications.
Molded FRP Grating
Cost-effective FRP grating for corrosion-resistant walkways, platforms, trench covers and wet industrial environments.
Pultruded FRP Grating
Phenolic FRP Grating
Fire-resistant and low-smoke FRP grating for projects with stricter safety and flame-retardant requirements.
Heavy-Duty FRP Grating
Designed for higher load requirements in industrial flooring, equipment access and heavy-duty platform applications.
FRP Grating Selection Guide for Industrial Projects
Select the suitable FRP grating type based on load requirement, span, fire safety, surface condition and application environment.
| Project Requirement | Recommended Option |
|---|---|
| General corrosion-resistant walkway | Molded FRP Grating |
| Long span or higher load | Pultruded FRP Grating |
| Fire safety / low smoke requirement | Phenolic FRP Grating |
| Equipment access or heavy-duty floor | Heavy-Duty FRP Grating |
| Wet, oily or slippery surface | Gritted Surface Option |
| Chemical exposure | Vinyl Ester Resin System |

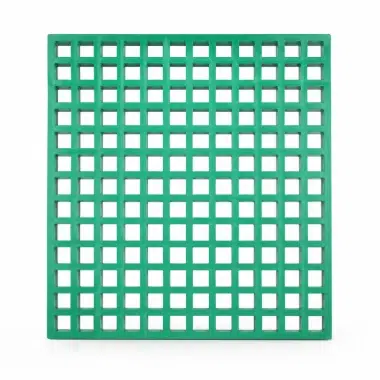

| Small object fall protection | Mini Mesh Grating |
Can't find a suitable option?
Tell us your span, load and application. Our experts will tailor the best FRP grating solution.
FRP Grating Specifications
Standard sizes are available, and custom dimensions can be supplied for project requirements.
| Model | Mesh Size (mm) | Weight (kg/m²) | Panel Sizes (mm) |
|---|---|---|---|
| 25 | 38 × 38 | 13 | 1000 × 4000 |
| 30 | 38 × 38 | 17 | 1000 × 4030 |
| 38 | 38 × 38 | 21.7 | 1220 × 3660 |
| 38 | 38 × 38 | 21.7 | 1220 × 2440 |
| 38 | 38 × 38 | 21.7 | 1000 × 4040 |
| 50 | 50 × 50 | 22 | 1220 × 3660 |
| 50 | 50 × 50 | 22 | 1000 × 4000 |
| 65 | 38 × 38 | 36 | 1000 × 4000 |
| Model | Bar Spacing (mm) | Weight (kg/m²) | Panel Sizes (mm) |
|---|---|---|---|
| I-20 | 20 | 21.5 | 1220 × 2440 |
| I-25 | 25 | 20.0 | 1220 × 2440 |
| I-30 | 30 | 18.5 | 1220 × 2440 |
| I-38 | 38 | 16.8 | 1220 × 3660 |
| I-40 | 40 | 16.2 | 1000 × 2000 |
| T-50 | 50 | 14.5 | 1220 × 3660 |
| T-60 | 60 | 12.8 | 1220 × 3660 |
| T-70 | 70 | 11.5 | 1000 × 2000 |
| Model | Mesh Size (mm) | Resin System | Panel Sizes (mm) |
|---|---|---|---|
| Phenolic 19 | 19 × 19 | Phenolic Resin | Customizable |
| Phenolic 25 | 25 × 25 | Phenolic Resin | Customizable |
| Phenolic 38 | 38 × 38 | Phenolic Resin | Customizable |
| Phenolic 50 | 50 × 50 | Phenolic Resin | Customizable |
| Phenolic 3876 | 38 × 76 | Phenolic Resin | Customizable |
| Phenolic 5076 | 50 × 76 | Phenolic Resin | Customizable |
| Phenolic 2576 | 25 × 76 | Phenolic Resin | Customizable |
| Phenolic 1938 | 19 × 38 | Phenolic Resin | Customizable |
| Model | Mesh Size (mm) | Load Type | Panel Sizes (mm) |
|---|---|---|---|
| Heavy-Duty 38 | 38 × 38 | Heavy Load | Customizable |
| Heavy-Duty 50 | 50 × 50 | Heavy Load | Customizable |
| Heavy-Duty 60 | 60 × 60 | Heavy Load | Customizable |
| Heavy-Duty 65 | 65 × 65 | Extra Heavy Load | Customizable |
| Heavy-Duty 3876 | 38 × 76 | Extra Heavy Load | Customizable |
| Heavy-Duty 5076 | 50 × 76 | Extra Heavy Load | Customizable |
| Heavy-Duty 6076 | 60 × 76 | Extra Heavy Load | Customizable |
| Heavy-Duty 7076 | 70 × 76 | Ultra Heavy Load | Customizable |
Need a specific size or load capacity?
Send us your required size, application, quantity and destination country.
• Surface Type
• Typical Applications
• Hot Color Options
Built for Harsh Industrial Environments
Corrosion Resistance
Suitable for chemical, wastewater, marine and outdoor
environments where steel may rust or require frequent maintenance.
Load Capacity Options
Anti-Slip Safety
Low Maintenance
Corrosion Resistance
Suitable for chemical, wastewater, marine and outdoor
environments where steel may rust or require frequent maintenance.
Load Capacity Options
Anti-Slip Safety
Gritted surface options help improve walking safety in wet, oily or
high-traffic areas.
Low Maintenance
FRP grating helps reduce repainting, rust treatment and replacement
frequency in corrosive environments.
FRP Grating Applications
FRP grating is widely used where corrosion resistance, safety and low maintenance are required.

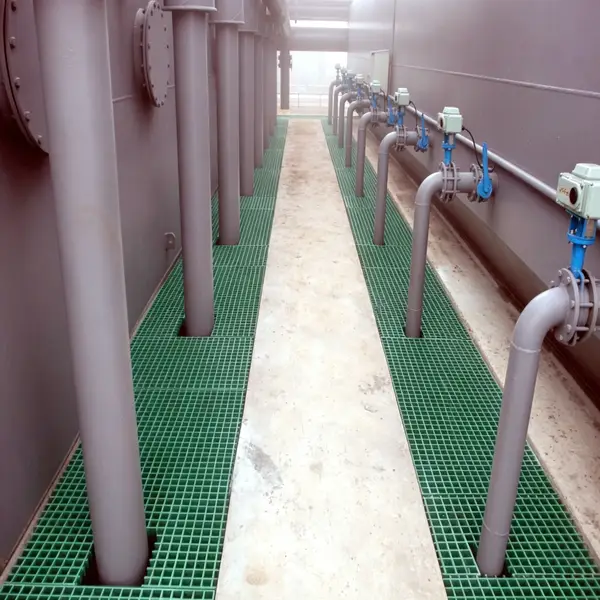

Chemical Plants
FRP grating is used for walkways, platforms and access areas exposed to corrosive chemicals and moisture.

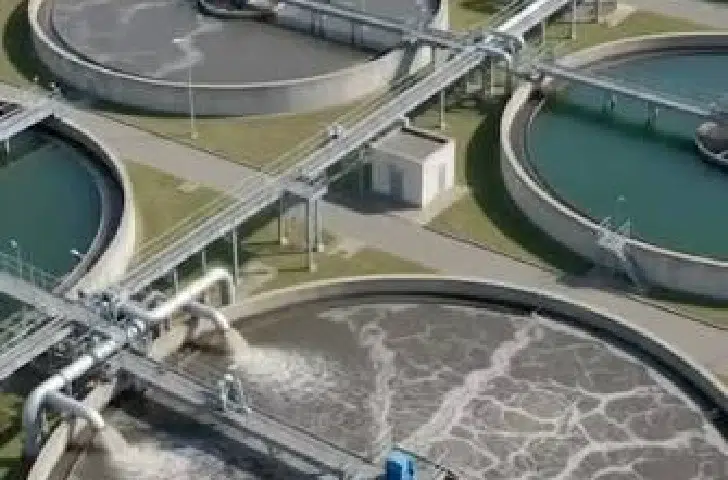

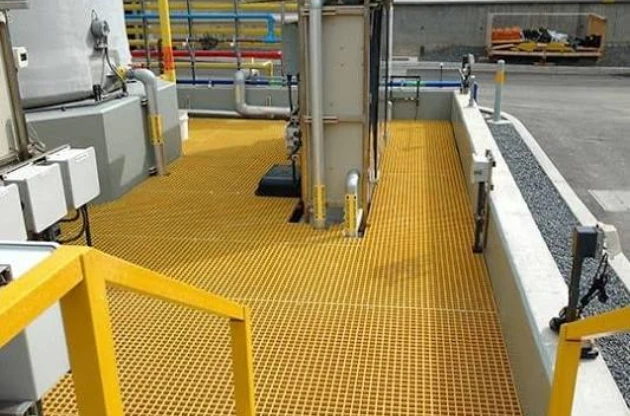

Wastewater Treatment
In wastewater treatment plants, FRP grating helps reduce corrosion problems caused by moisture, chemicals and long-term outdoor exposure.

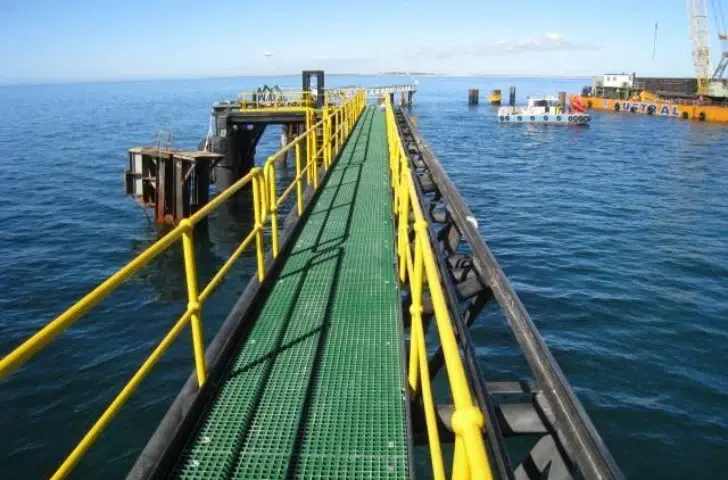

Marine & Offshore Platforms
FRP grating is suitable for saltwater and coastal environments where metal grating may require frequent maintenance.

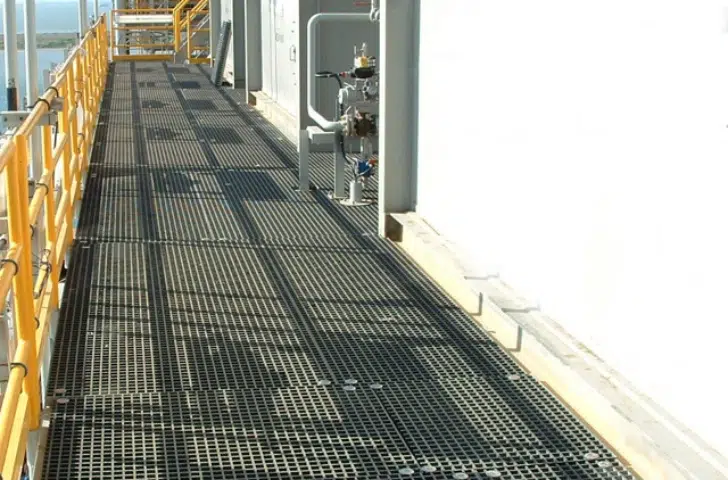

Industrial Walkways
FRP grating provides a lightweight, corrosion-resistant and anti-slip flooring option for industrial walkways and access platforms.

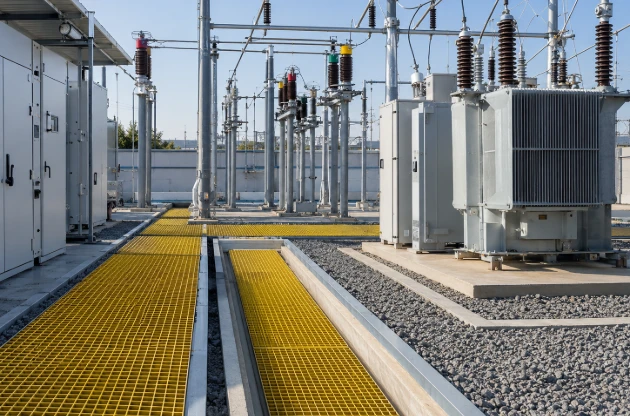

Power Plants
FRP grating can be used in power plant access areas, maintenance platforms and corrosive outdoor environments.

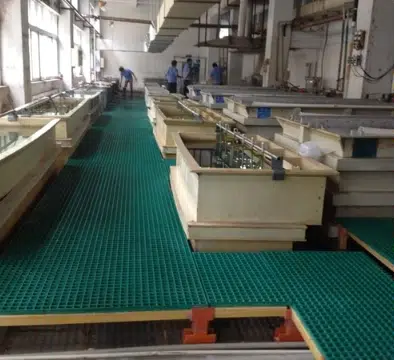

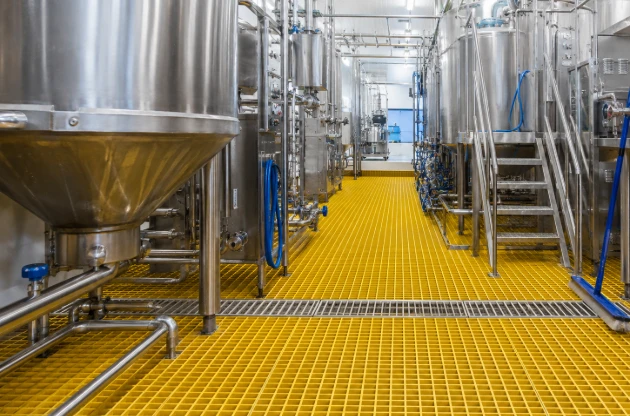

Food Processing Facilities
FRP grating is used in wet processing areas where slip resistance, corrosion resistance and easy maintenance are important.

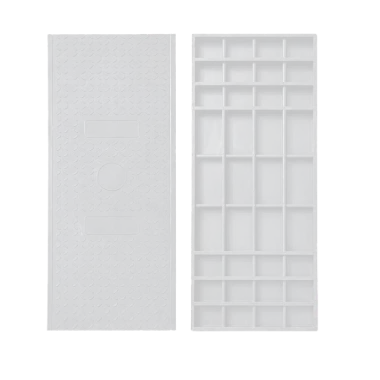

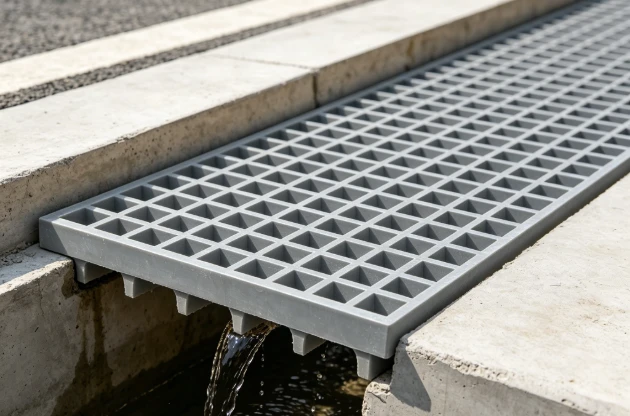

Trench Covers & Drainage
FRP grating can be used as trench covers and drainage covers in industrial, municipal and chemical environments.

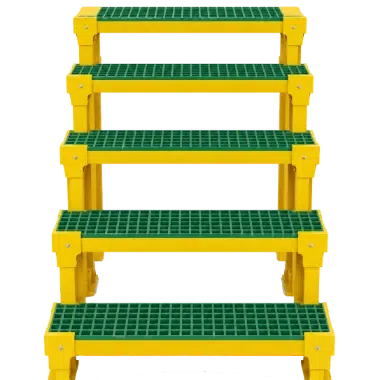

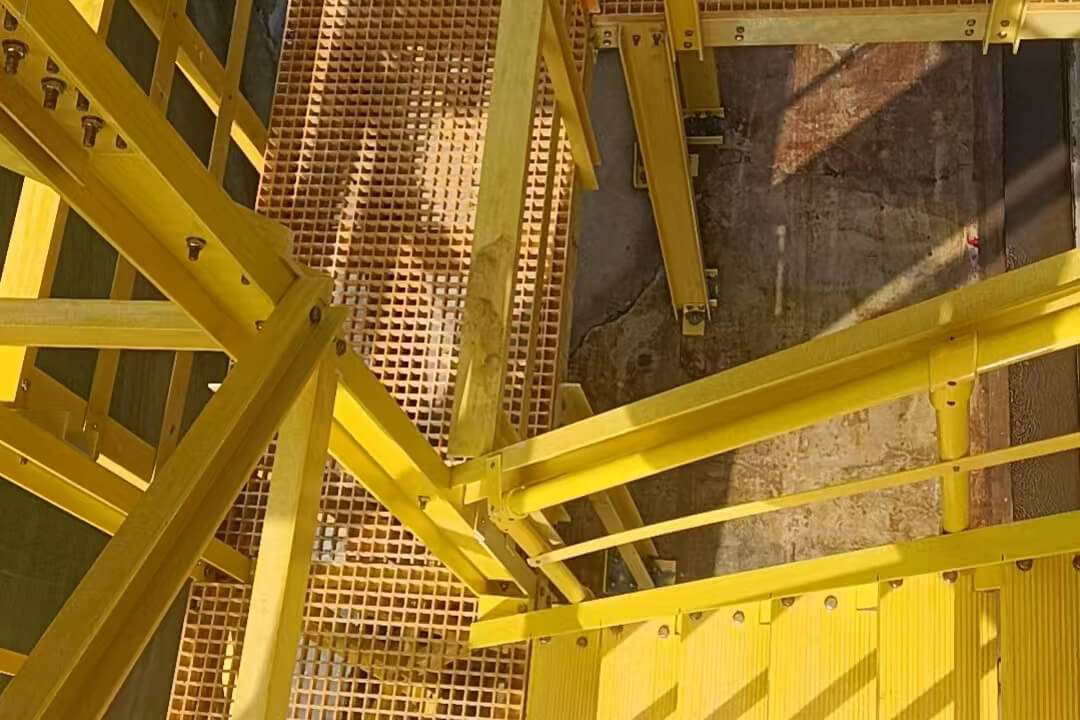

Stair Treads & Access Platforms
FRP grating can be fabricated into stair treads and access platforms for safer movement in industrial facilities.
FRP Grating Applications
FRP grating is widely used where corrosion resistance, safety and low maintenance are required.
Marine & Offshore Platforms
FRP grating is suitable for saltwater and coastal environments where metal grating may require frequent maintenance.
- Recommended
Factory Direct FRP Grating Supply for Bulk Orders
Mingchi FRP supports industrial buyers, contractors and sourcing companies with stable FRP grating production and export supply.
· 15,000mi Production Base
· Multiple FRP Production Lines
· Export Experience for Global Projects
· Long-Term FRP Manufacturing Experience
Molded and pultruded grating production
Custom cutting and fabrication
Resin and color options
Bulk order production
Export packaging
Container loading experience
Quality inspection before shipment
- 15,000㎡ Production BaseMultiple FRP
- Production LinesExport Experience for Global
- ProjectsLong-Term FRP
- Manufacturing Experience
grating production
fabrication
experience
before shipment
Quality Control & Compliance Support
Every order is checked before shipment to support stable project delivery and international procurement requirements.
Raw Material Check
Dimension Inspection
Surface Quality Check
Cutting & Edge Check
Packaging Inspection
Certificates
Available certificates and compliance documents can be provided according to project requirements.
Quality Control & Compliance Support
Every order is checked before shipment to support stable project delivery and international procurement requirements.
Standard profiles for repeated orders
Custom profiles for project needs
Mixed product loading
Factory-direct pricing
Catalog and technical document support
OEM color and packaging options
More FRP Grating Options
FRP Grating FAQ
Q1: What is the difference between molded and pultruded FRP grating?
Q2: Can you cut FRP grating to custom sizes?
Q3: Which resin system should I choose for chemical environments?
Q4: Can FRP grating be used outdoors?
Q5: What information is needed for quotation?
Q6: Do you support bulk orders and export packaging?
Q1: What is the difference between molded and pultruded FRP grating?
Molded FRP grating is commonly used for corrosion-resistant walkways, platforms and trench covers. Pultruded FRP grating is usually selected for higher load capacity or longer span requirements.
Q2: Can you cut FRP grating to custom sizes?
Yes. Mingchi FRP can provide custom cutting and fabrication according to project size requirements.
Q3: Which resin system should I choose for chemical environments?
The resin system depends on the chemical exposure, temperature and working environment. You can send us your application details, and our team will recommend a suitable option.
Q4: Can FRP grating be used outdoors?
Yes. FRP grating is widely used in outdoor, marine, wastewater and industrial environments where corrosion resistance is required.
Q5: What information is needed for quotation?
Please provide the product type, size, quantity, application, destination country and any special material or resin requirements.
Q6: What is the difference between molded and pultruded FRP grating?
Molded FRP grating is commonly used for corrosion-resistant walkways, platforms and trench covers. Pultruded FRP grating is usually selected for higher load capacity or longer span requirements.
