FRP Profiles
Custom FRP Profiles Manufacturer & Supplier
• Corrosion Resistant • Anti-slip Surface • Long Service Life
Corrosion Resistant
High Load Capacity
Anti-slip Surface
Eosy Installation
FRP PROFILES TYPES
Multiple options to meet different project requirements

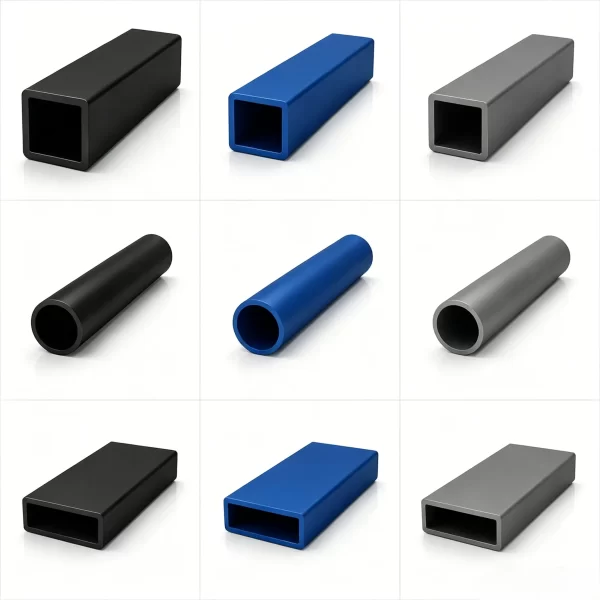

FRP Square Tube
- Pultruded fiberglass square tubes are the ideal lightweight alternative to steel and aluminum for structural applications.
- High strength-to-weight ratio: 70% lighter than steel with equivalent load capacity
FRP I-Beam
- Modular & easy to assemble: Cut, drill and install with standard tools, no welding required
- Resistant to water, chemicals and rot: Ideal for wastewater treatment and marine applications
- Provides excellent drainage & ventilation: Prevents water pooling and bacterial growth
FRP Angle
- Modular & easy to assemble: Cut, drill and install with standard tools, no welding required
- Resistant to water, chemicals and rot: Ideal for wastewater treatment and marine applications
- Provides excellent drainage & ventilation: Prevents water pooling and bacterial growth
FRP Channel
- Precision extruded profiles: Consistent dimensions for seamless fabrication and installation
- High strength while remaining lightweight: Easy to handle and transport to remote sites
- Superior corrosion resistance: Outperforms steel in acidic, alkaline and saline environments

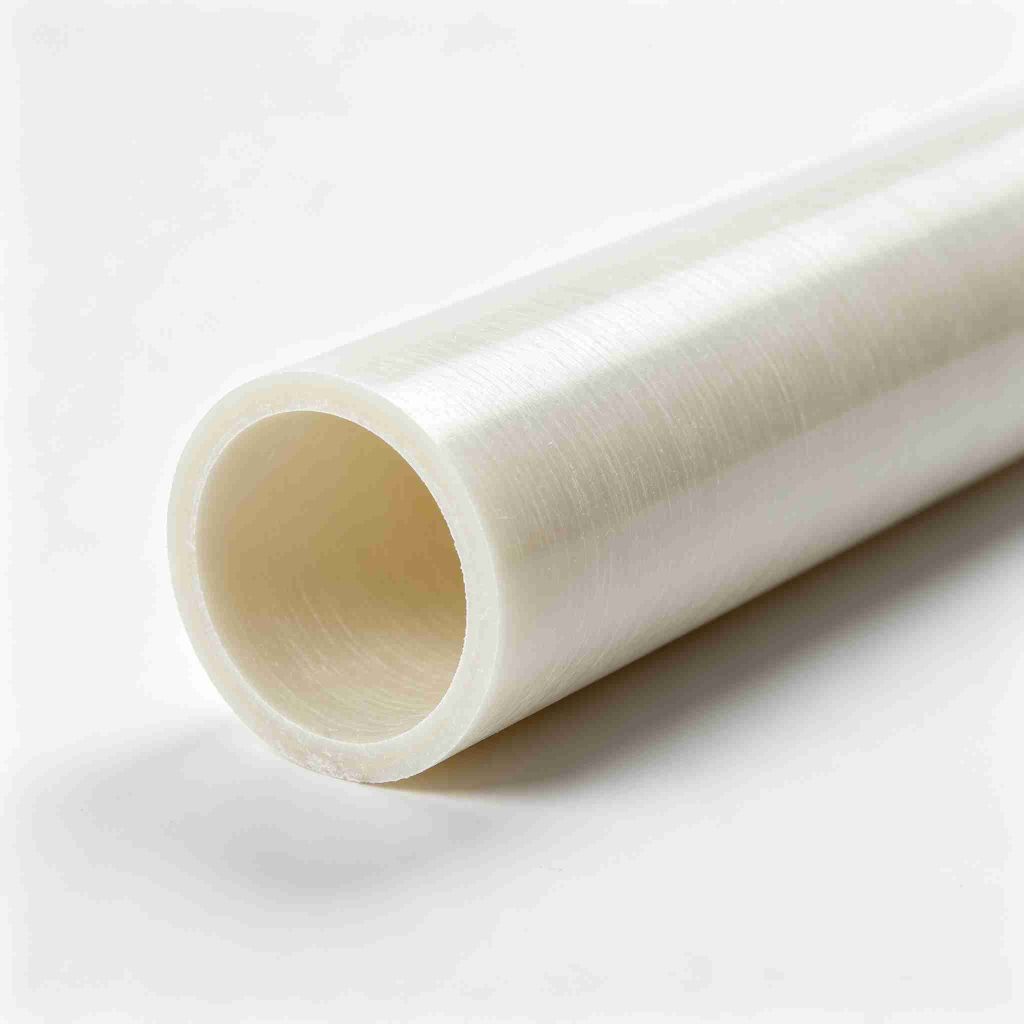

FRP Round Tube
- High strength-to-weight ratio: 75% lighter than steel, easy to transport and install
- Superior corrosion resistance: No rust, no maintenance, ideal for chemical plants and marine facilities
- Excellent electrical insulation: Non-conductive, safe for power transmission and electrical equipment

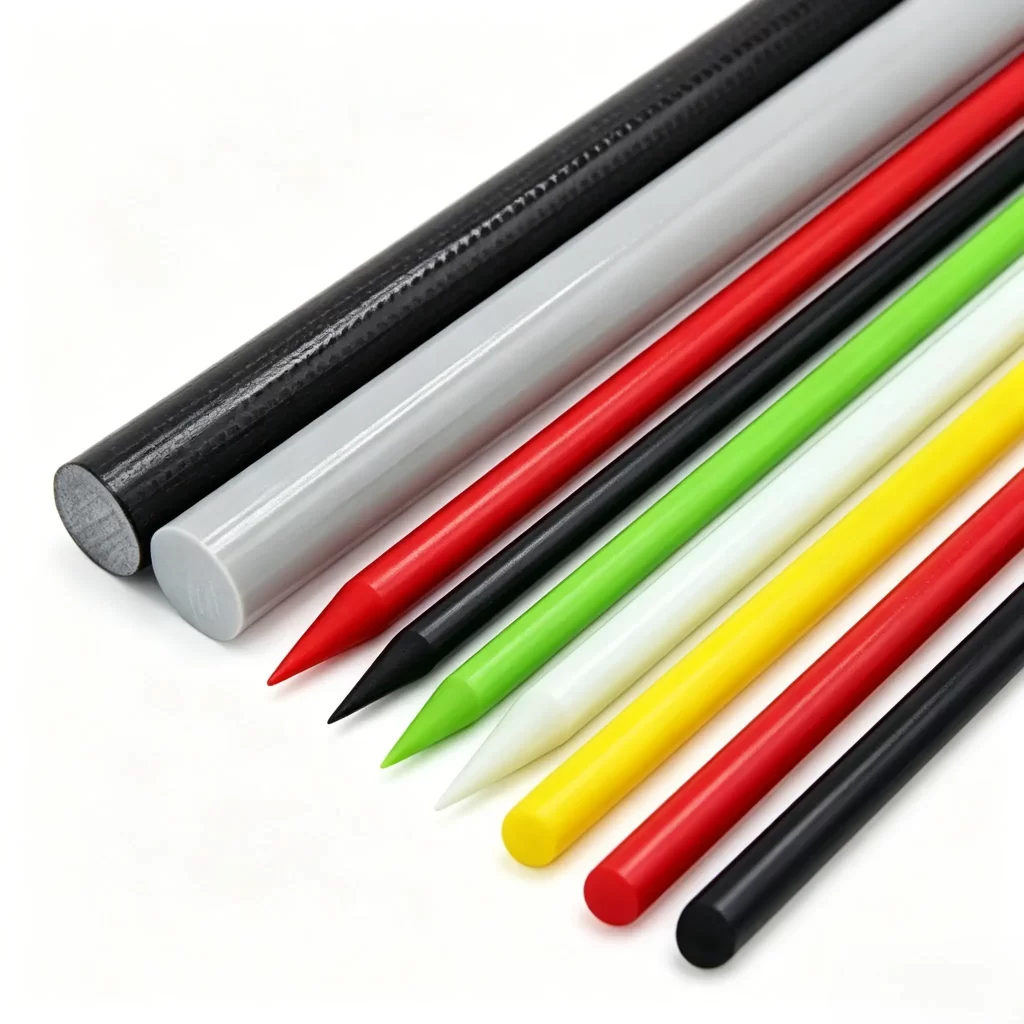

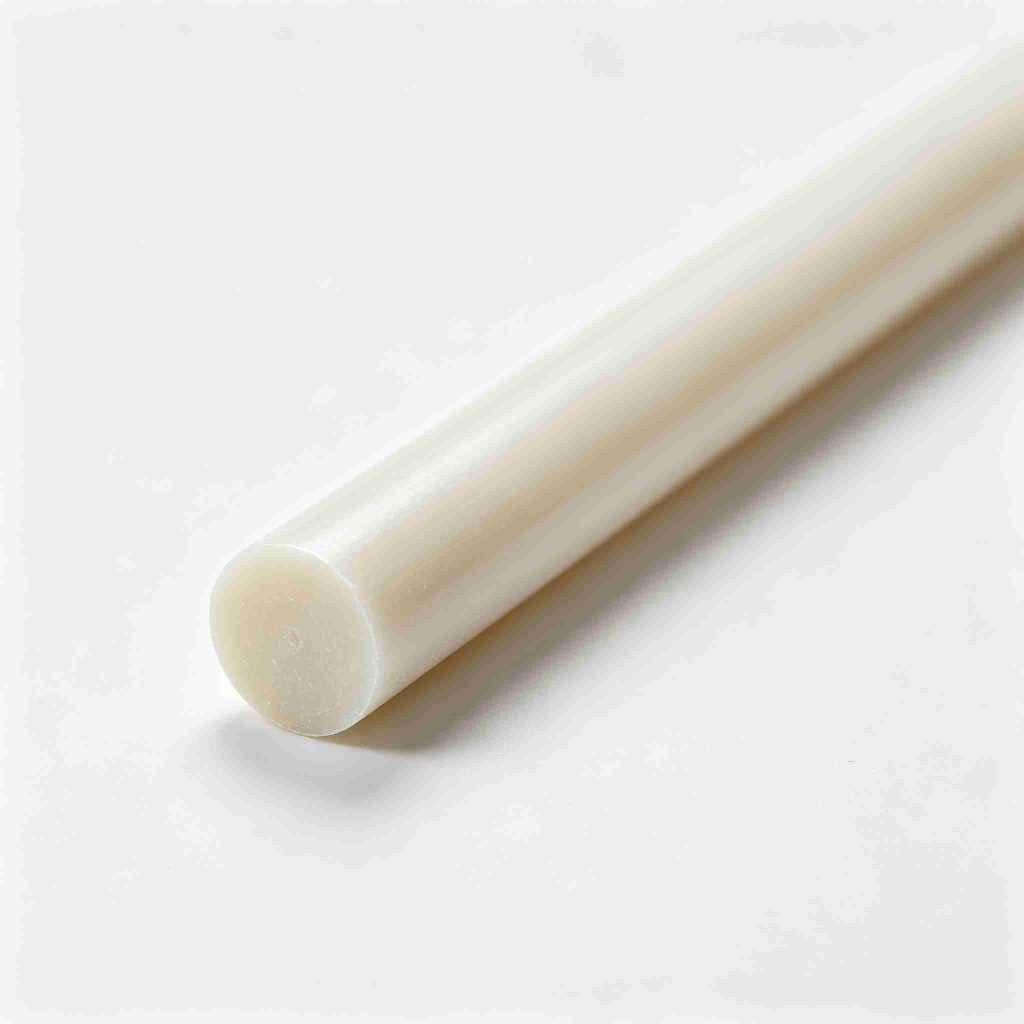

FRP Solid Round Bar
- Continuous fiberglass reinforcement: Maximum axial strength and impact resistance
- Excellent load-bearing capacity: Replaces steel rods and shafts in corrosive environments
- UV and chemical resistant: Withstands prolonged exposure to harsh chemicals and sunlight
FRP Purlin
- Lightweight yet rigid: Reduces structural load on buildings, cuts installation time by 50%
- Corrosion and rot proof: Outlasts steel purlins in coastal, chemical and agricultural environments
- Low maintenance: No painting or rust treatment required for 25+ years
CUSTOMIZED
- Custom cross-sections: Any shape, size and wall thickness available
- Material customization: Different resin systems for specific chemical and temperature requirements
- Color matching: RAL color options to match your project aesthetics
- Fast turnaround: Prototyping in 7-10 days, mass production in 2-3 weeks
FRP Tube Specifications
| Parameter | Unit | Value |
|---|---|---|
| Density | g/cm³ | 1.8-2.0 |
| Tensile strength | MPa | 300-500 |
| Compressive strength | MPa | 200-400 |
| Flexural strength | MPa | 300-500 |
| Modulus of elasticity | GPa | 20-40 |
| Thermal conductivity | W/mK | 0.25-0.35 |
| Coefficient of thermal expansion | 1/K | 8-12 × 10⁻⁶ |
FRP Rod Specifications
| Diameter (mm) | Length (m) | Color | Tensile Strength (MPa) | Flexural Strength (MPa) | Density (g/cm³) |
|---|---|---|---|---|---|
| 3 | customizable | customizable | 800 | 600 | 2.0 |
| 5 | customizable | customizable | 750 | 550 | 2.0 |
| 8 | customizable | customizable | 700 | 500 | 2.0 |
| 10 | customizable | customizable | 650 | 450 | 2.0 |
| 12 or customizable | customizable | customizable | 600 | 400 | 2.0 |
Excellent Product Properties
Corrosion Resistant
Engineered with premium FRP materials to withstand moisture, chemicals, and harsh outdoor environments for long-lasting durability.
High Load Capacity
Designed with reinforced structural strength to support heavy loads while maintaining stability and performance over time.
Anti-slip Surface
Textured anti-slip finish enhances safety by providing reliable traction in wet, oily, or high-traffic conditions.
Eosy Installation
Lightweight and modular design allows for quick installation, reducing labor time and maintenance costs.

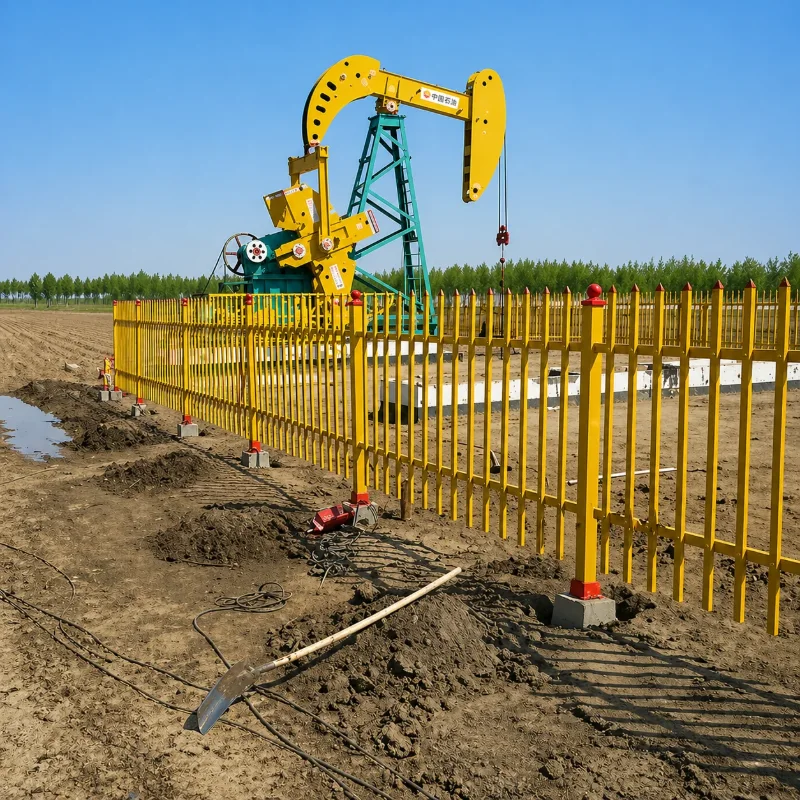

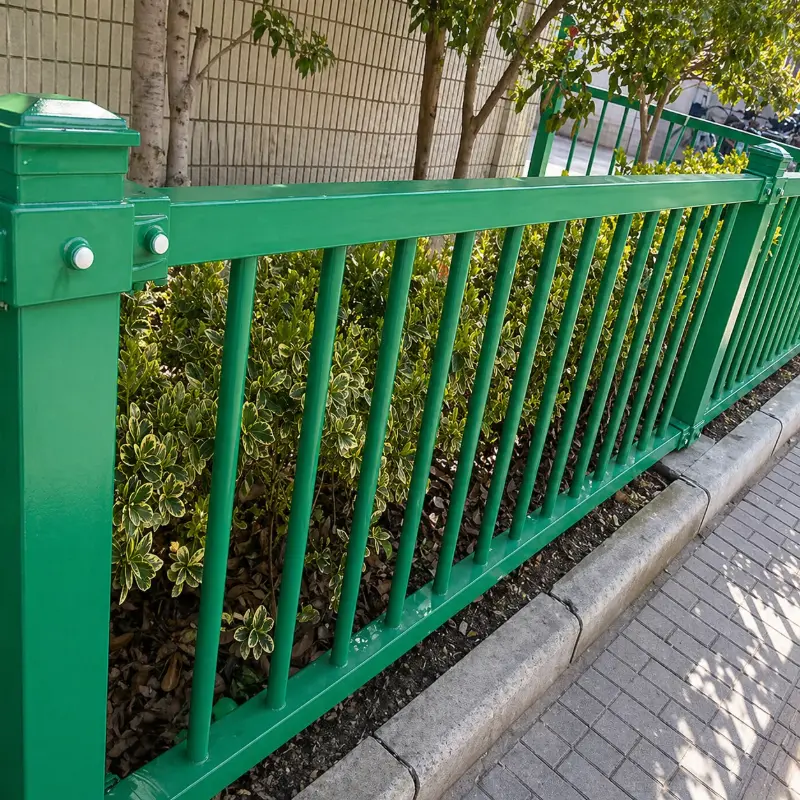

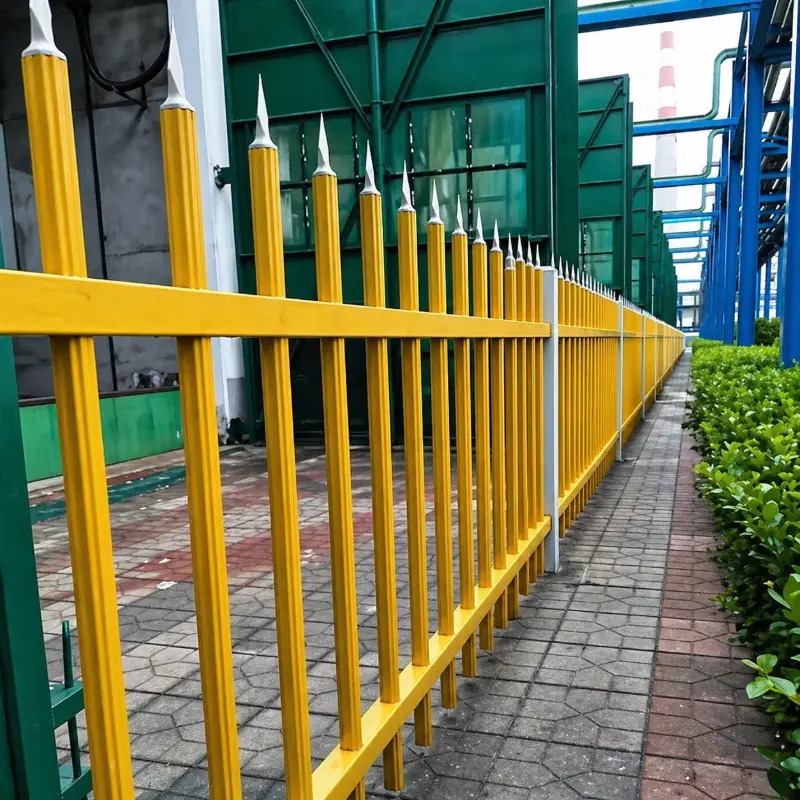

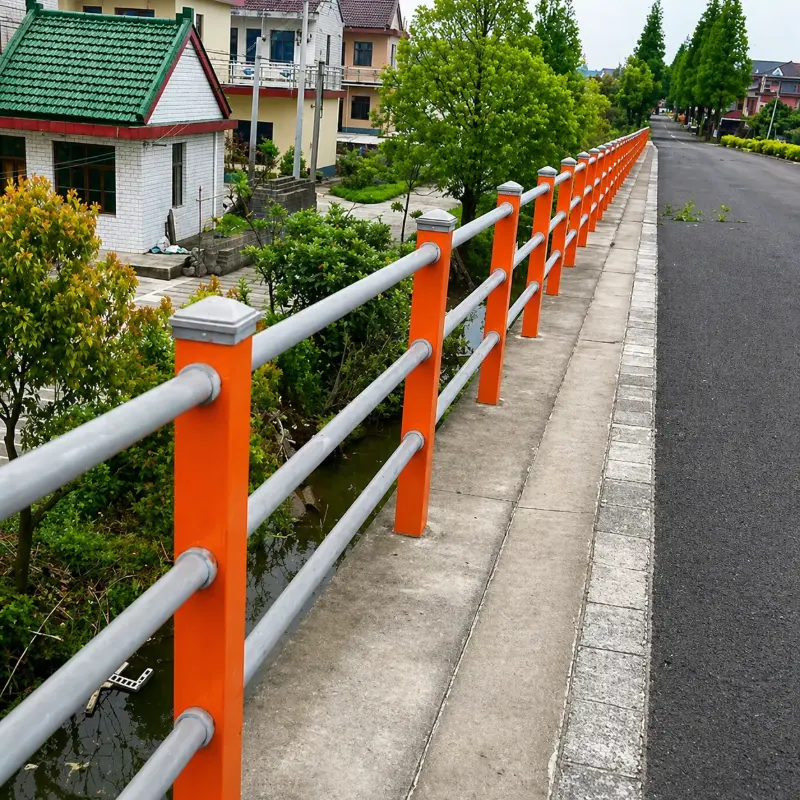

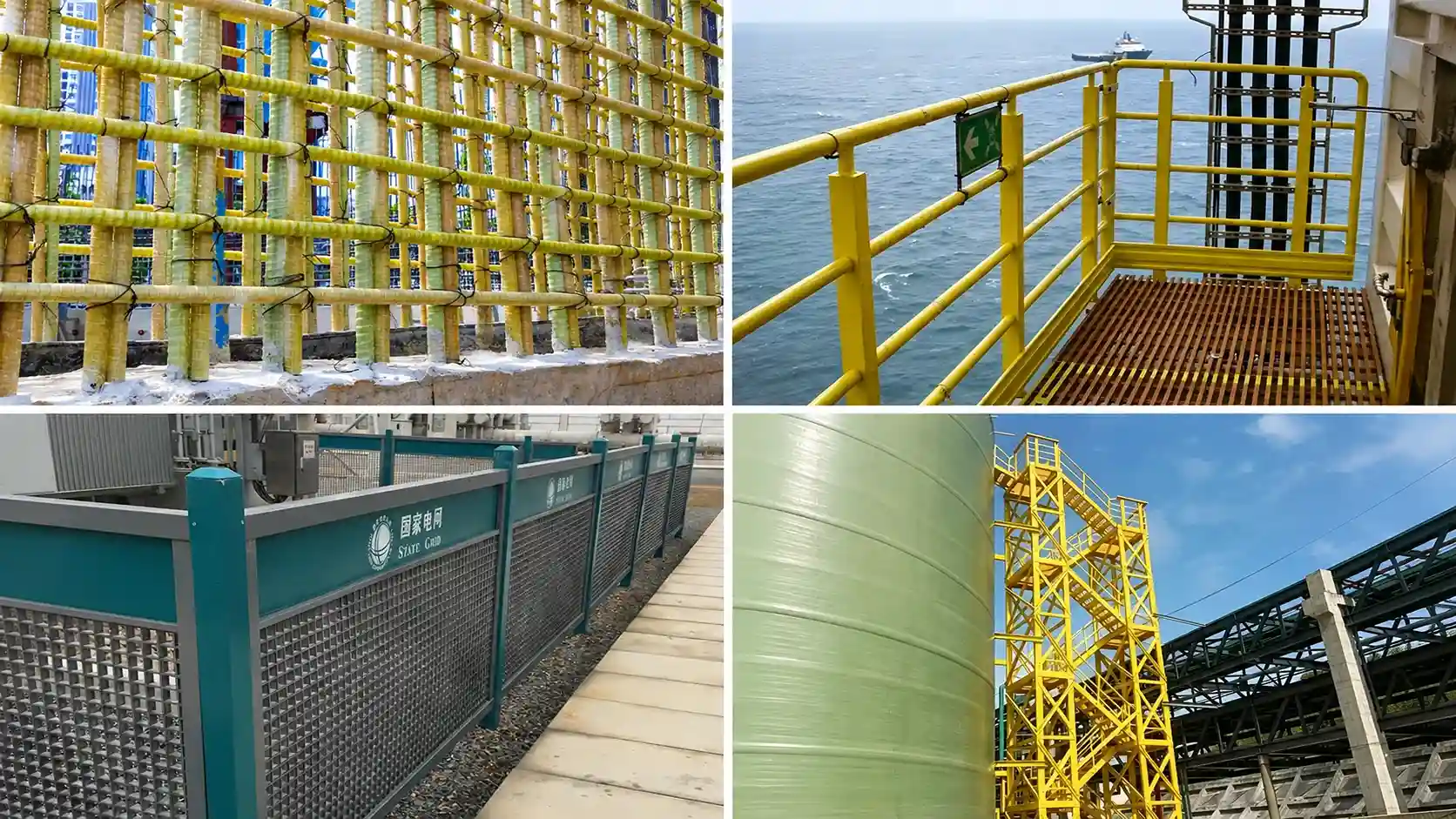

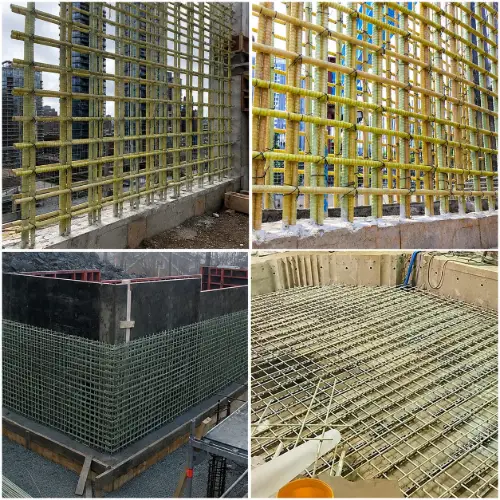

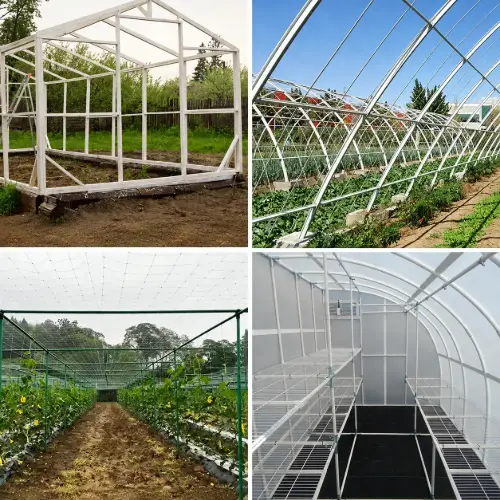

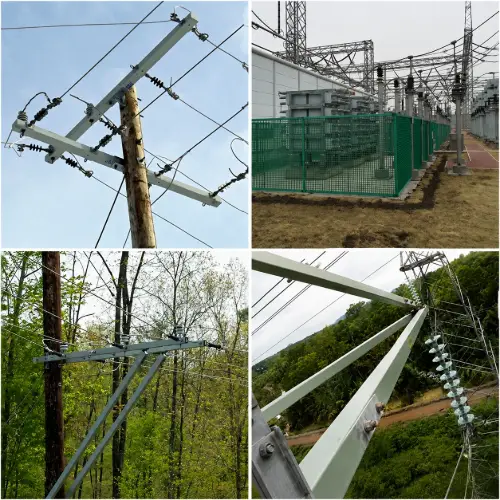

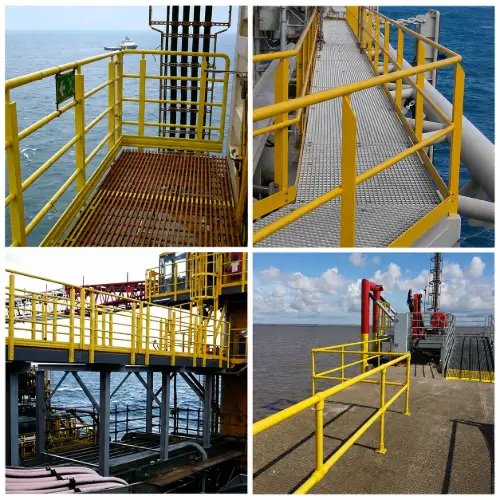

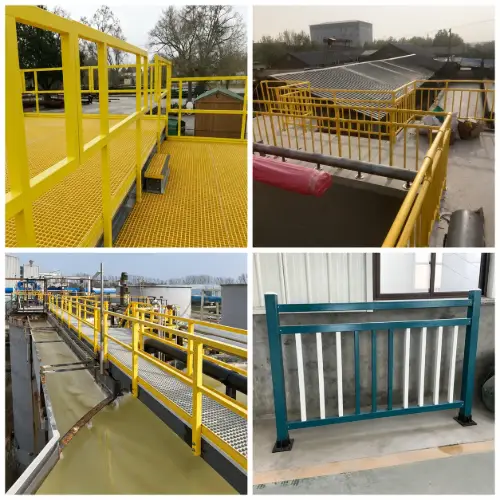

Applications
Why Choose US?
Long-lasting FRP solutions for harsh industrial environments.
Tailor-made grating and profiles for your project needs.
Lightweight design cuts installation time and costs.
Reliable supply chain and dedicated customer support.
Our Certifications

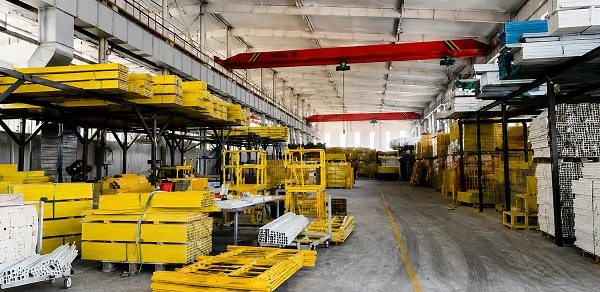

Trusted FRP Grating Manufacturer
We are a professional manufacturer with advanced production
lines, strict quality control and rich export experience.
15000+
Factory Area
20+
Production Lines
20+
Export Countries
20+
Years Experience
