Phenolic FRP Gratin
Manufactured with phenolic resin and fiberglass reinforcement, Phenolic FRP Grating provides low flame spread, low smoke generation and reliable structural performance in demanding fire-sensitive environments. It is designed for offshore platforms, marine walkways, oil and gas facilities, transit systems and industrial access areas where standard FRP grating may not meet project fire-performance requirement
| Width | Customizable |
|---|---|
| Length | Customizable |
| Grating Type | Pultruded Grating |
| Surface | Gritted, Concave or Smooth |
| Color | Dark Red, Brown, Gray or Custom |
Customizable Options
Tailored size, color, and surface finish to meet your project needs.
Factory-Direct Pricing
Save costs with direct production from our source factory.
Product Introduction
1. Phenolic FRP Grating Product Description
Phenolic FRP Grating is a fiberglass-reinforced structural grating manufactured with a phenolic resin system. Compared with standard polyester or vinyl ester FRP grating, it is developed for applications requiring stronger fire performance, lower smoke generation and reduced toxic fume emissions.
The grating combines fire-safety performance with corrosion resistance, electrical non-conductivity and a high strength-to-weight ratio. It can be supplied in molded or pultruded construction according to the required load, clear span, panel layout and installation environment.
Typical applications include offshore platforms, ship decks, emergency access routes, oil and gas facilities, petrochemical plants, tunnels and industrial walkways.
2. Key Advantages of Phenolic FRP Grating
| Core Advantage | Detailed Description |
|---|---|
| Low Flame Spread | The phenolic resin system helps limit flame spread in applications where fire performance is a critical design requirement. |
| Low Smoke Generation | Produces significantly less smoke than many conventional resin systems when exposed to fire. |
| Reduced Toxic Fume Emissions | Designed for enclosed, marine and offshore areas where smoke and toxic fume control are important. |
| Fire Integrity | Selected systems can retain structural integrity for longer during fire exposure, subject to product design and test classification. |
| Corrosion Resistance | Resists saltwater, moisture and many industrial chemicals without rusting or requiring protective paint. |
| High Strength-to-Weight Ratio | Provides reliable structural performance while reducing dead load compared with steel grating. |

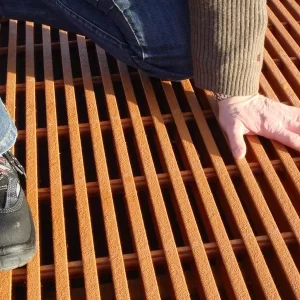

| Slip-Resistant Surface | Gritted or concave surfaces improve traction on wet, oily and exposed working areas. |
| Non-Conductive | Fiberglass construction provides electrical insulation for suitable industrial environments. |
| Low Maintenance | Does not require regular painting or galvanizing, helping reduce long-term maintenance requirements. |
3. Applications of Phenolic FRP Grating
| Application Field | Application Details |
|---|---|

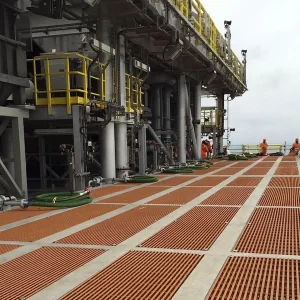

| Offshore Oil and Gas | Working platforms, access walkways, escape routes, stair treads and equipment areas. |

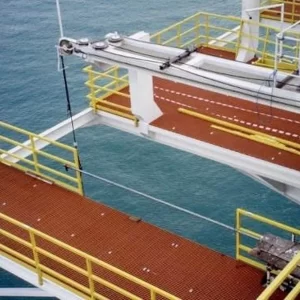

| Marine and Shipbuilding | Vessel decks, ship walkways, docks and saltwater‑exposed access structures. |
| Petrochemical Facilities | Refinery platforms, chemical processing areas and maintenance walkways. |
| Tunnels and Transit Systems | Access platforms and evacuation routes requiring controlled flame and smoke performance. |
| Power and Energy Facilities | Service platforms, cable access areas and electrically sensitive environments. |
| Industrial Processing | Fire‑sensitive operating areas, elevated platforms and corrosion‑resistant walkways. |
| Mining Facilities | Processing platforms, access routes and areas exposed to corrosive materials. |
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Phenolic resin reinforced with fiberglass |
| Product Type | Molded or pultruded phenolic FRP grating |
| Panel Size | Standard and custom sizes available |
| Thickness | 25 mm, 30 mm, 38 mm, 40 mm, 50 mm or customized |
| Mesh or Bar Configuration | Selected according to grating type and project requirements |
| Surface Finish | Gritted anti‑slip, concave or smooth |
| Color Options | Dark red, brown, gray or customized |
| Key Performance | Low flame spread, low smoke generation and corrosion resistance |
| Load Requirements | Confirmed according to load type, clear span and allowable deflection |
| Fire Testing | ASTM E84, ASTM F3059, IMO or project‑specific testing available subject to product configuration |
| Customization | Cutting, panel layout, fixing clips, drawings and project documentation available |
5. Why Choose Mingchi Phenolic FRP Grating?
Mingchi supplies phenolic FRP grating for marine, offshore, petrochemical and other fire-sensitive industrial projects. We help buyers select the appropriate grating construction, panel thickness, support span, surface finish and fixing system based on actual project conditions.
Our project support includes:
- Molded and pultruded grating options
- Custom panel dimensions and fabrication
- Load and span evaluation
- Anti-slip surface options
- Matching clips and installation accessories
- Technical drawings and documentation
- Export packaging and international delivery
Contact Mingchi FRP and send us your required dimensions, load conditions, support span, application environment and fire-performance standard for evaluation.
Production and Quality Control
Phenolic FRP grating requires controlled resin preparation, fiberglass reinforcement, forming and curing. Mingchi monitors raw materials, panel dimensions, surface quality and structural consistency throughout production.
Before shipment, the grating can be inspected according to the agreed product specification. Project-specific fire-performance reports and compliance documents should be confirmed before production because requirements vary between marine, offshore, transit and industrial projects.
Frequently Asked Questions
01. What is the difference between phenolic grating and standard FRP grating?
The main difference is the resin system. Standard FRP grating normally uses polyester or vinyl ester resin, while phenolic grating uses phenolic resin to provide improved flame, smoke and toxicity performance.
02. Is phenolic FRP grating fireproof?
Phenolic grating offers stronger fire performance than conventional FRP grating, but it should not be described as completely fireproof. Its actual flame spread, smoke development and fire-integrity classification depend on the product construction and applicable test report.
03. Is molded or pultruded phenolic grating better?
Molded phenolic grating provides multidirectional reinforcement and is suitable for complex layouts and frequent cut-outs. Pultruded phenolic grating normally provides greater strength in the bearing-bar direction and is better suited to longer spans or higher directional loads.
04. Can phenolic grating meet ASTM or marine standards?
Products can be designed and tested according to standards such as ASTM E84 or ASTM F3059. IMO, USCG, ABS or other marine requirements must be confirmed according to the exact product and available certification documents.
05. What information is required for a quotation?
Please provide the grating type, panel size, thickness, clear support span, load requirement, surface finish, quantity, application environment and required fire standard. Project drawings or specifications are especially helpful.
06. Can you provide custom panels and fabrication?
Yes. Panel dimensions, cut-outs, edge trimming, surface finish and fixing accessories can be customized according to the project drawing.
07. Can I request a sample?
Samples can be provided depending on the required specification and available stock. Freight charges and sample availability will be confirmed before shipment.
