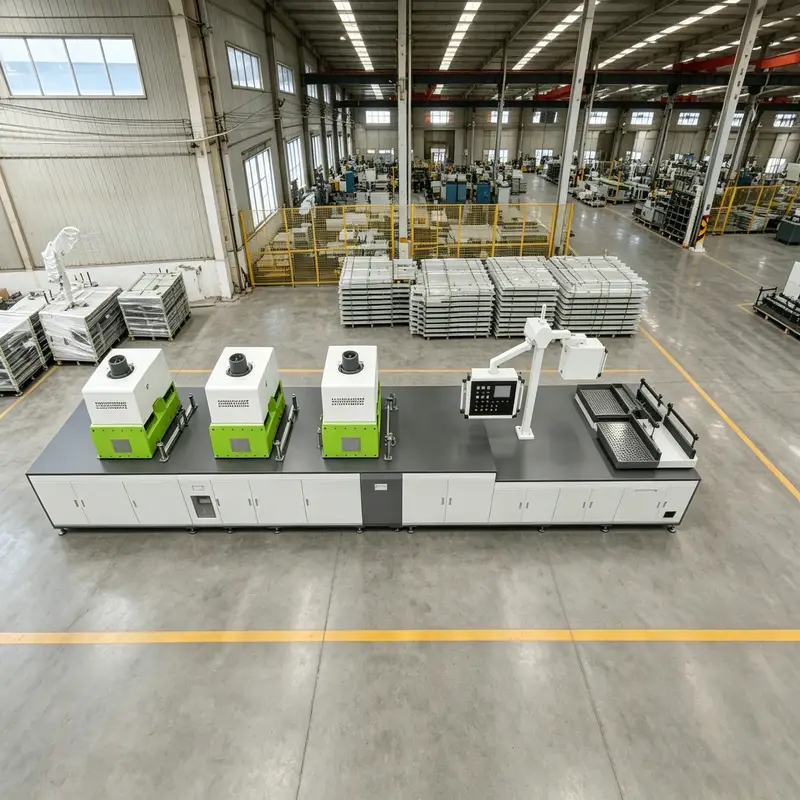

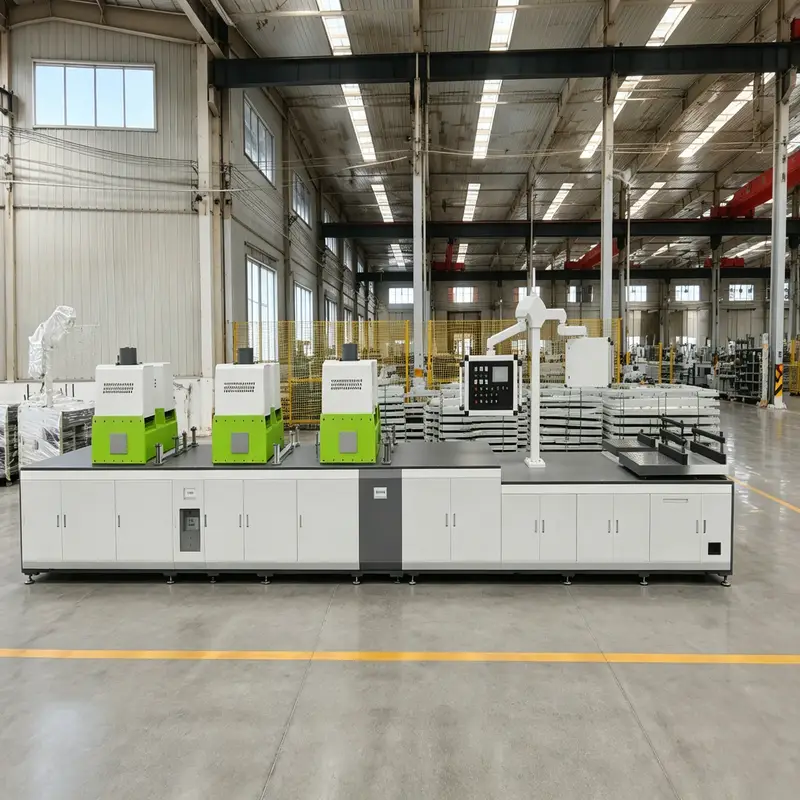

Double-Station Hydraulic Pultrusion Production Line
Dual-station hydraulic design achieves higher production efficiency. It runs steadily with reliable traction, ensuring consistent finished quality for large-scale FRP manufacturing.
Customizable Options
Tailored size, color, and surface finish to meet your project needs.
Factory-Direct Pricing
Save costs with direct production from our source factory.
Product Introduction
1.Double-Station Hydraulic Pultrusion Production Line Introduction
Double-Station Hydraulic Pultrusion Production Line is high-efficiency automated manufacturing equipment dedicated to mass production of various FRP profiles. Featuring dual-station synchronous operation design and reliable hydraulic power system, this machine realizes uninterrupted continuous pulling and forming. It boasts large output, stable operation and strong universality, being ideal core production equipment for medium and large-scale fiberglass composite material factories.
2.Key Advantages of Our Double-Station Hydraulic Pultrusion Production Line
| Core Advantage | Detailed Description |
| High Production Efficiency & Space Utilization | Equipped with double workstations, the machine’s production capacity is doubled, which can effectively maximize on-site space utilization and improve overall production efficiency. |
| Stable & Energy-Saving Drive System | Adopts a servo motor drive system, which not only ensures a smooth running state and stable operation, but also achieves a remarkable energy-saving effect, reducing production energy consumption. |
| Strong Compatibility | Equipped with a professional hydraulic clamping method, it has strong compatibility and can fit the processing needs of various types of FRP profiles, with a wide application scope. |
| Excellent Versatility & Adaptability | It has excellent versatility and adaptability, and can flexibly cope with different production requirements and raw material conditions, meeting diverse production needs. |
| Efficient Forming Performance | Matched with a segmented temperature control structure, it can make the resin cure fully and shape the profiles rapidly, ensuring both product quality and production speed. |
| Easy Operation & Maintenance | The centralized control design simplifies operation steps, brings great convenience to daily parameter adjustment and routine equipment maintenance, and reduces labor costs. |
| Long Service Life & Low Failure Rate | With thickened body frame and high-quality supporting parts, it effectively reduces the failure frequency of the equipment and greatly extends the overall service life. |
3.Wide Range of Industrial Applications
| Application Scene | Detailed Description |
| Industrial Anti-corrosion FRP Profiles | Mass production of industrial anti-corrosion FRP structural profiles |
| Construction Engineering Fiberglass Profiles | Production of construction engineering fiberglass supporting profiles |
| Marine & Chemical Resistant FRP Products | Processing of marine and chemical environment resistant FRP products |
| Tool Handles & Decorative FRP Materials | Manufacturing of tool handles, window profiles and decorative FRP materials |
| Custom Large-size Heavy-duty Pultruded Profiles | Custom processing of various large-size and heavy-duty pultruded profiles |
4.Technical Specifications
| Specification Category | Parameter Item | Unit | ZSY10 |
| Mold Table | Width | mm | 500 |
| Length | mm | 600-1200 | |
| Adjustment Interval | mm | 100 | |
| Pulling Force | Pulling Force | kN | 100 |
| Pulling Speed | Pulling Speed | m/min | 0-1.2 |
| Clamping Force | Clamping Force | kN | 250 |
| Clamping Space | Length | mm | 1000 |
| Width | mm | 400 | |
| Height | mm | 250 | |
| Drive System Power | Drive System Power | kW | 3.7×4 + 2.9×4 |
| Heating Zones | Heating Zones | – | 8 Zones × 2 |
| Temperature Control Range | Temperature Control Range | ℃ | 0-250 |
| Temperature Control Accuracy | Temperature Control Accuracy | ℃ | ±1 |
| Heating Power | Heating Power | kW | 24×2 |
| Total Power | Total Power | kW | 76 |
| Overall Dimensions | Length | mm | 11000 |
| Width | mm | 1700 | |
| Height | mm | 2200 | |
| Total Weight | Total Weight | t | 12 |
5.Why Choose Our Double-Station Hydraulic Pultrusion Production Line?
We supply high-standard fully-equipped double-station hydraulic pultrusion production lines featuring stable performance. Strict factory assembly and comprehensive pre-delivery testing plus precise component commissioning ensure smooth resin impregnation, steady traction and qualified finished profiles, enabling efficient and low-consumption FRP production. We also provide professional installation guidance, operation training and complete after-sales support to help clients launch formal production rapidly and secure steady profits.
