Fiberglass Angle for Cooling Tower

Cooling tower support members operate around moisture, water spray and treatment chemicals. Material selection matters when building new support assemblies or replacing existing components.
Mingchi fiberglass angle is manufactured by pultrusion, combining glass fiber reinforcement with a resin system to produce a consistent L-shaped profile. It can be used in rear support and bracing arrangements where corrosion resistance, manageable weight and practical connections are required.
The application photos show support arrangements behind cooling tower panels. The angle members form part of the supporting framework, with their placement and connections determined by the tower design.

Key Advantages

Corrosion-Resistant Material
Fiberglass angle does not rust like steel. The resin system should be selected according to cooling water chemistry, treatment chemicals and operating temperature.
Lightweight and Easy to Handle
Compared with steel profiles of the same dimensions, fiberglass angle is lighter, making handling and positioning easier during installation and replacement.
Practical L-Shaped Section
The angle section provides two surfaces for connection and mounting. It can be incorporated into panel supports, connection brackets and bracing assemblies according to approved drawings.
Reduced Rust-Related Maintenance
FRP supports avoid the rust-removal and repainting work associated with corroding steel. Regular inspections of connections and profile condition are still necessary.
Flexible Project Options
Profile dimensions, length, color and resin system can be specified for different cooling tower designs. Cutting and drilling requirements can also be reviewed before production.

Cooling Tower Applications

Rear Panel Support
Fiberglass angle can form part of the framework behind cooling tower panels, providing attachment and support points according to the installation layout.
Bracing Assemblies
Angle profiles can be incorporated into bracing arrangements where the selected section and connections meet the design requirements.
Support Replacement
For cooling tower refurbishment, fiberglass angle offers a corrosion-resistant material option for selected support components. Replacement suitability must be checked against the existing structure and operating loads.
Custom Support Frameworks
For new cooling tower projects, angle profiles can be supplied to specified lengths and incorporated into fabricated support assemblies.

Technical Specifications

Item	Specification
Product Name	Fiberglass Angle / FRP Angle Bar
Profile Shape	Equal‑Leg L Section

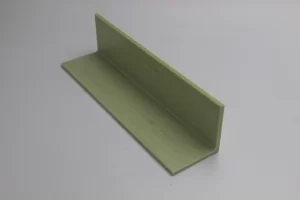

Reference Size	50×50×5 mm
Manufacturing Process	Pultrusion
Material	Glass Fiber Reinforced Resin
Resin Options	Polyester or Vinyl Ester
Standard Length	6 m; custom lengths on request
Color Options	Available colors to be confirmed when ordering
Surface	Smooth pultruded finish
Main Application	Cooling Tower Rear Support and Bracing
Customization	Dimensions, length, color and resin system
Fabrication	Cutting and drilling requirements subject to review
Structural Suitability	Determined by section properties, span, loads and connection design

Material Selection and Installation

Choose the resin system based on the actual operating environment, including temperature, water chemistry and exposure to treatment chemicals.Support spacing, member orientation, hole positions and fasteners should follow the project drawings. FRP angle should not be substituted for a steel member solely because the external dimensions match.
When cutting or drilling, follow the supplier’s fabrication guidance and use suitable dust control and personal protective equipment. Any sealing of exposed cut surfaces should follow the specified resin system’s requirements.

Manufacturing and Quality Control

Mingchi manufactures fiberglass angle profiles using the pultrusion process. Project requirements should be confirmed before production, including dimensions, resin selection, length, color and fabrication details.
Inspection requirements can cover profile dimensions, surface condition, cut lengths and drilled-hole locations. If mechanical testing or specific documentation is required, include it in the inquiry so the inspection scope can be agreed before ordering.

Frequently Asked Questions

What is fiberglass angle used for in a cooling tower?
It can be used in rear panel support, bracing and related support assemblies. The exact function depends on the cooling tower layout and structural design.
Can fiberglass angle replace steel angle?
It may be suitable for selected replacement applications after an engineering review. FRP and steel have different stiffness, strength and connection behavior, so matching dimensions alone is insufficient.
Which resin is suitable for my cooling tower?
Selection depends on operating temperature, water chemistry and treatment chemicals. Provide these conditions when requesting a quotation.
Can you supply custom lengths or drilled profiles?
Custom lengths and fabrication requirements can be reviewed. Send a drawing showing cut lengths, hole sizes and hole positions.
Does fiberglass angle require maintenance?
It avoids rust-related maintenance, but the support assembly still needs periodic inspection. Check fasteners, connections and profiles for loosening, damage or deterioration.
What information is needed for a quotation?
Send the required dimensions, lengths and quantities. If available, include a support drawing and the cooling tower operating conditions.

Request a Quote

Looking for fiberglass angle for cooling tower rear support?
Send Mingchi FRP your required dimensions, lengths and quantities. Include a drawing and operating conditions where available, so we can review the supply requirements and prepare a quotation.

We produce FRP Angle Bar on fully automated pultruded production lines, with stable and consistent process control throughout manufacturing. We implement strict quality inspections from raw material selection to final packaging, ensuring every angle bar delivers uniform quality and dependable performance for all kinds of industrial and engineering applications.
