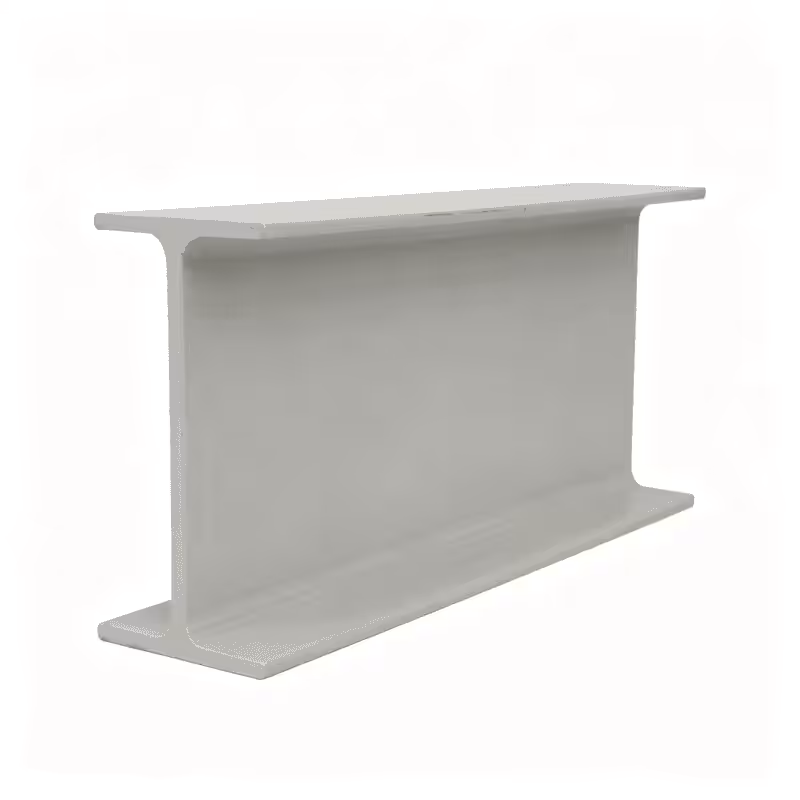

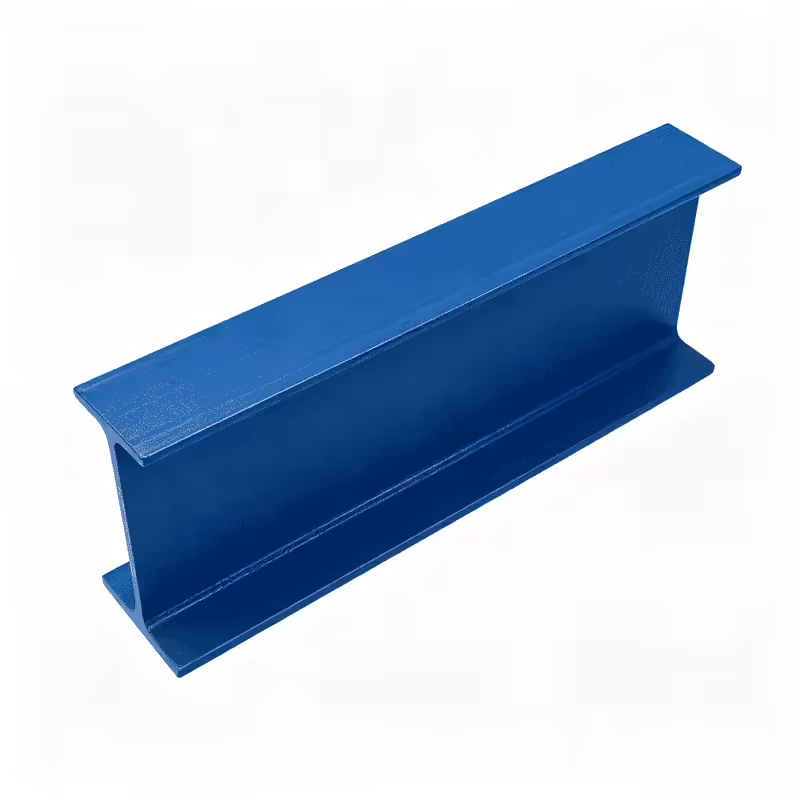

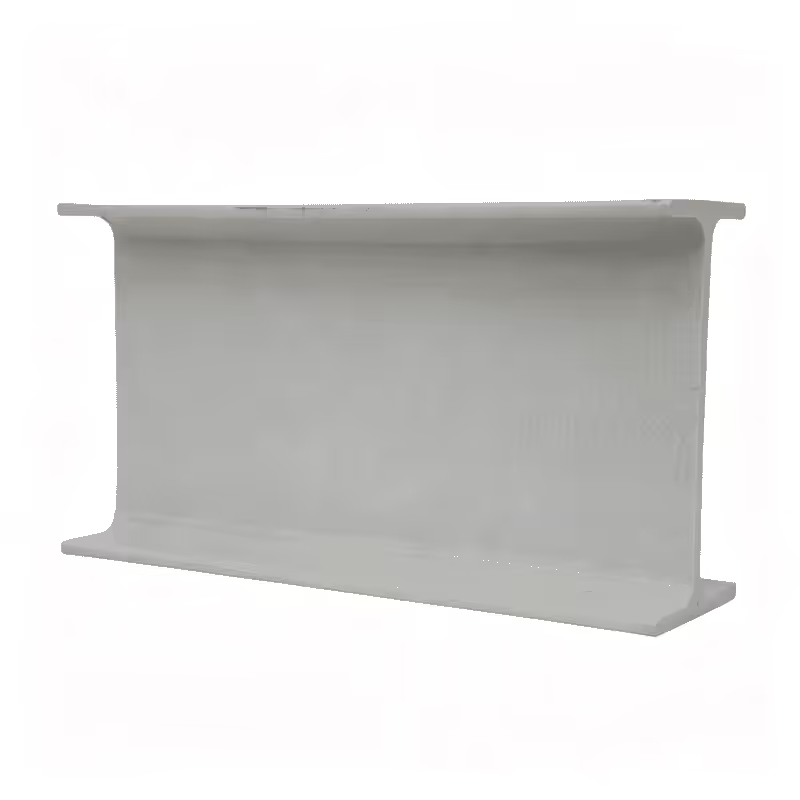

75×150×6mm Fiberglass I-Beam
This 75×150×6mm fiberglass I-beam is manufactured via advanced pultrusion, boasting high load-bearing capacity, rust-free property and minimal maintenance for harsh industrial and outdoor structures.
| Width | 75mm |
|---|---|
| Height | 150mm |
| Thickness | 6mm |
| Color | Yellow, black, green, blue, red, etc |
Customizable Options
Tailored size, color, and surface finish to meet your project needs.
Factory-Direct Pricing
Save costs with direct production from our source factory.
Product Specifications
| Parameter | Value |
|---|---|
| Raw Material | Unsaturated Polyester Resin/Vinyl Ester Resin + E-glass Fiber |
| Production Process | Pultrusion / Molding |
| Applications | Industrial/ Agricultural/ Electrical &Energy/ Infrastructure / Water & Chemical/ Marine &Docks |
| Temperature Range | -40°C ~ +120°C |
Product Introduction
1.75×150×6mm Fiberglass I-Beam Introduction
75×150×6mm Fiberglass I-Beam is a high-strength pultruded fiberglass structural beam specially designed for heavy-duty load-bearing and long-span engineering applications. As an excellent corrosion-proof, lightweight and durable substitute for traditional steel I-beams, our 75×150×6mm Fiberglass I-Beam features superior bending resistance, high rigidity and stable overall structure. It is the perfect solution for industrial main frames, large platform supports, roof load-bearing systems and corrosive environment long-span construction projects worldwide.
2.Key Advantages of Our 75×150×6mm Fiberglass I-Beam
- Heavy-Duty Load Bearing & High Rigidity: The 75×150×6mm large I-shaped cross-section provides outstanding flexural performance and structural stability, ideal for long-span and heavy-load supporting scenarios.
- Superior Corrosion & Weather Resistance: Resistant to acid, alkali, saltwater, chemical vapor and UV aging; no rust, no decay, and free from regular anti-corrosion painting maintenance.
- Non-Conductive & High Safety Performance: Inherent insulation property with optional fire-retardant grade, suitable for power engineering, chemical plants and flammable and explosive industrial areas.
- Lightweight & Easy Construction: Lighter than steel I-beams of the same specification, effectively reducing transportation cost and building foundation load; easy to cut, drill and install on site.
- Long Service Life & Low Maintenance: Excellent fatigue resistance and weather resistance ensure a service life over 20 years, greatly reducing later maintenance and replacement investment.
3.Wide Range of Industrial Applications
- Large Industrial Platforms: Factory elevated walkways, heavy-duty operating platforms, and multi-story building load-bearing beams.
- Roof & Main Building Framing: Large warehouse roof beams, workshop main structural frames, and industrial plant long-span supporting members.
- Marine & Coastal Projects: Seaside large-scale facility beams, offshore platform structural supports, and salt-fog corrosion resistant long-span components.
- Chemical & Wastewater Treatment Plants: Corrosive workshop main beams, sewage tank large-span support frames, and anti-corrosion overhead structural parts.
- Municipal & Public Engineering: Landscape pedestrian bridge main beams, large outdoor facility supports, and long-term anti-rust load-bearing profiles.
4.Technical Specifications (Customizable)
- Material: High-quality unsaturated polyester resin / vinyl ester resin reinforced with E-glass fibers
- Production Process: Pultruded
- Profile Size: 75×150×6mm (customizable according to engineering requirements)
- 75×150×6mm Fiberglass I-Beam Fire resistance: Excellent
- 75×150×6mm Fiberglass I-Beam Load capacity: 10.5–13.8 kN/m
- 75×150×6mm Fiberglass I-Beam Standard sizes: 3000mm – 6000mm customizable length
- 75×150×6mm Fiberglass I-Beam Span tables: Average span 3.0 m
- 75×150×6mm Fiberglass I-Beam Load tables: 9.6–12.9 kN/m at 2.8–3.0 m span
- 75×150×6mm Fiberglass I-Beam Texture: Smooth, gritted anti‑slip, concave
- Color Options: Yellow, gray, green, orange, custom RAL colors
- Mechanical Properties: Ultra-high bending strength, strong impact resistance, stable dimensional stability and excellent anti-fatigue performance
- Certifications: ISO 9001, CE, ASTM standard
5.Why Choose Our 75×150×6mm Fiberglass I-Beam?
As a professional manufacturer of FRP composite products, we produce reliable 75×150×6mm Fiberglass I-Beam that meets strict international quality standards. We support both standard and customized projects with professional technical support, stable production, and competitive pricing.
Contact us today to discuss your 75×150×6mm Fiberglass I-Beam needs and get a free quote!
Production Line
We produce Mingchi 75×150×6mm Fiberglass I-Beam on fully automated pultruded production lines, with stable and consistent process control throughout manufacturing. We implement strict quality inspections from raw material selection to final packaging, ensuring every I-beam delivers uniform quality and dependable performance for all kinds of heavy-duty long-span industrial and engineering construction applications.
Industry Application
Fiberglass (FRP) is a versatile, corrosion-resistant engineered material, powering critical applications across bridge infrastructure, industrial safety, chemical processing, marine terminals, municipal engineering, and solar energy. With unmatched durability, low maintenance, and high strength, FRP solutions deliver long-lasting performance for demanding industrial environments worldwide.
