1. Introduction: Lightweight Structural Replacement for Steel
In modern structural engineering, reducing dead load while maintaining load-bearing performance is a key design priority. FRP I-Beam (Fiberglass Reinforced Polymer I-Beam) has emerged as a reliable alternative to traditional steel beams in corrosive, heavy-duty, and maintenance-sensitive environments.
Compared with steel, FRP I-Beams can reduce structural weight by up to 75%, while offering long-term durability without rust, coating degradation, or frequent maintenance. This makes them especially suitable for infrastructure where lifecycle cost and corrosion resistance are critical design factors.
2. Mechanical Properties: Key Engineering Performance Data
FRP I-Beams are engineered composite profiles designed for predictable structural performance. Typical mechanical properties include:
- Tensile Strength: 200 – 350 MPa
- Flexural Strength (Bending Strength): 250 – 450 MPa
- Compressive Strength: 150 – 300 MPa
- Shear Strength: 30 – 80 MPa
- Elastic Modulus: 10 – 25 GPa
- Density: ~1.8 – 2.0 g/cm³
Strength-to-Weight Advantage vs Steel
While steel has a higher elastic modulus (~200 GPa), FRP I-Beams compensate through:
- Extremely low density (≈1/4 of steel)
- High corrosion resistance
- Improved strength-to-weight efficiency in non-extreme deflection-critical spans
This makes FRP structural systems ideal for secondary structural systems, platforms, walkways, and support frames.
3. Load Reference Table (Indicative Design Values)
The following table provides general safe load estimations for standard FRP I-Beam configurations under uniformly distributed load conditions. Actual values depend on beam size, resin system, and support conditions.
| Span Length | Safe Uniform Load (kg/m²) | Application Level |
|---|---|---|
| 2 m | 800 – 1200 kg/m² | Heavy-duty platforms |
| 4 m | 400 – 700 kg/m² | Industrial walkways |
| 6 m | 200 – 400 kg/m² | Light structural support |
4. Application Scenarios: Where FRP I-Beams Are Used
Bridge Maintenance Platforms
FRP I-Beams are widely used in bridge inspection and maintenance platforms where structural strength, corrosion resistance, and lightweight installation are essential. They help reduce dead loads while providing reliable support in harsh outdoor environments.
- Lightweight alternative to steel support beams
- Resistant to moisture, road salts, and weather exposure
- Reduces installation and transportation costs
- Ideal for bridge access platforms and maintenance walkways

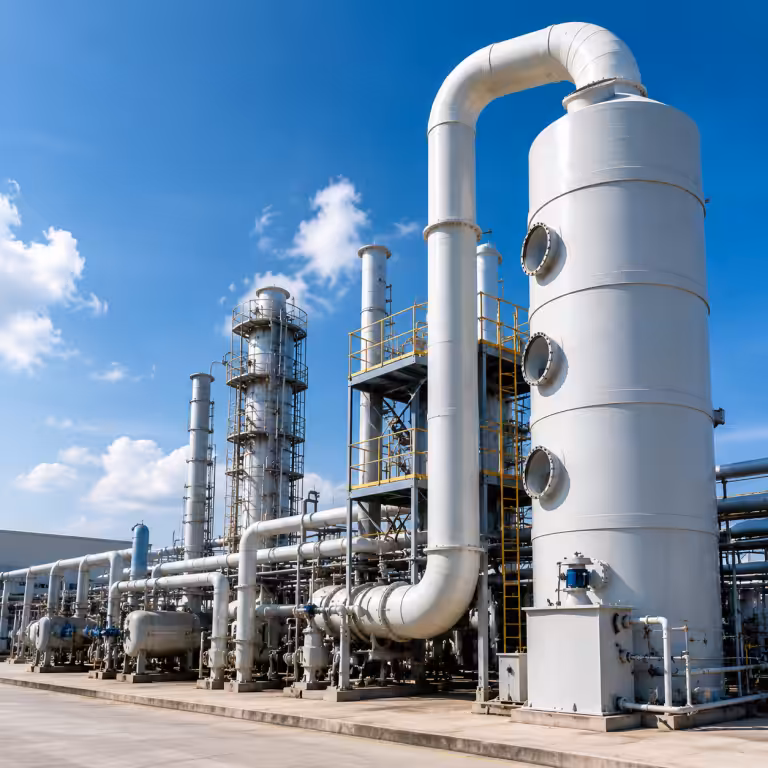

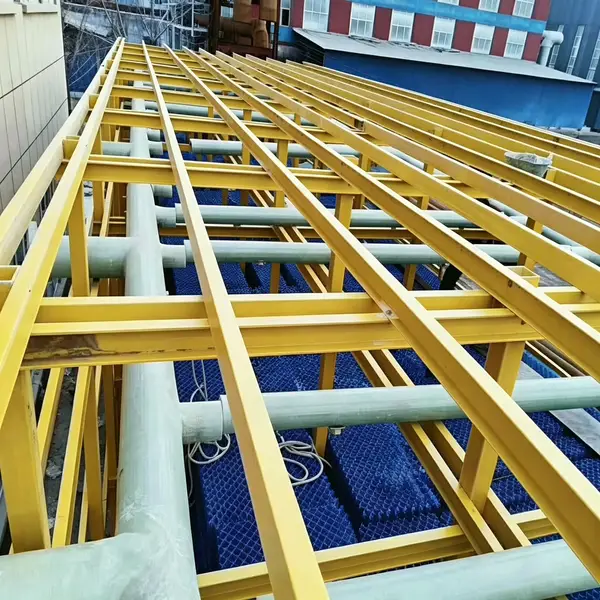

Equipment Support Structures
In chemical plants, power stations, and wastewater treatment facilities, FRP I-Beams provide durable structural support for equipment and piping systems. Their corrosion-resistant properties help ensure long-term performance with minimal maintenance.
- Suitable for chemical and industrial environments
- Resistant to corrosion, acids, and alkalis
- Low maintenance and long service life
- Ideal for equipment frames and pipe support systems

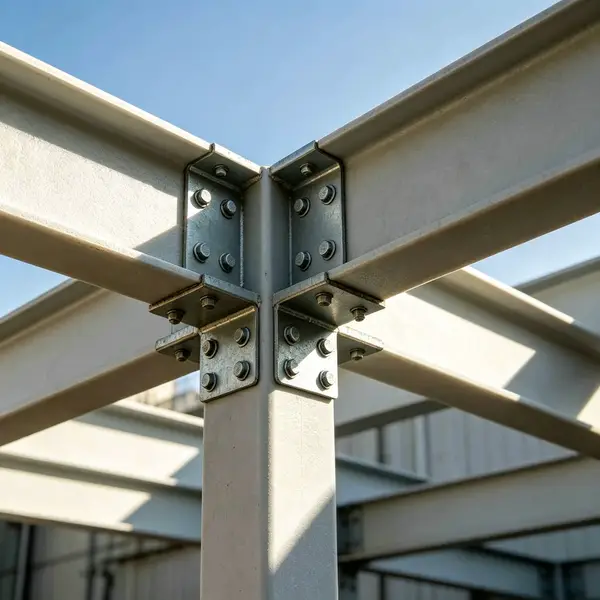

Industrial Building Frames
FRP I-Beams can be incorporated into industrial structures as secondary framing members, roof supports, and reinforcement components. Their high strength-to-weight ratio helps improve construction efficiency while reducing structural weight.
- High structural strength with reduced weight
- Corrosion-resistant alternative to steel framing
- Easy handling and installation
- Suitable for factories and industrial facilities
Heavy-Duty Walkways & Catwalks
Heavy-Duty walkways and elevated access systems require strong and reliable structural supports. FRP I-Beams provide excellent load-bearing performance while remaining lightweight and resistant to harsh environmental conditions.
- Supports heavy pedestrian and equipment loads
- Resistant to chemicals, moisture, and UV exposure
- Lightweight for easier installation
- Ideal for catwalks, platforms, and access systems
5. Custom Engineering & Structural Support
To ensure safe and optimized design integration, FRP I-Beam systems can be fully customized based on project requirements:
- Custom cross-section design (I, H, box hybrid profiles)
- Finite Element Analysis (FEA) simulation reports
- Load-span optimization based on project drawings
- Fire-retardant resin options (ASTM E84 compliant systems available)
- Corrosion-specific resin selection (chemical / marine grade)
Engineering teams typically provide:
- Technical datasheets
- Deflection and load-span calculations
- Installation guidance for structural integration
6. Engineering Inquiry & Project Support
For structural engineers, contractors, and procurement teams, selecting the right FRP I-Beam specification is essential for ensuring structural safety, long-term performance, and cost efficiency. Request engineering data sheets, load-span tables, and technical recommendations for your project to support accurate design and material selection.
Contact us today for marine-grade FRP I-Beam solutions, free samples, and expert engineering support. Our team can help you evaluate load requirements, optimize beam specifications, and provide customized structural solutions for your application.
